Used 2022 Leisure Travel Wonder 24FTB AWD

Motor Home Class B+

Stock #6085

Las Vegas, NV

Call Today!!

1 of 46

+46

Specifications

Sleeps	2	Length	24 ft 9 in
Ext Width	7 ft 11 in	Ext Height	10 ft
Int Height	6 ft 5 in	GVWR	11000 lbs
Fresh Water Capacity	33.5 gals	Grey Water Capacity	35 gals
Black Water Capacity	26.4 gals	Furnace BTU	16000 btu
Fuel Type	Gas	Miles	18014
Engine	3.5L Eco-Boost V6	Chassis	Ford Transit Dual Rear Wheel
Horsepower	310 hp	Fuel Capacity	25 gals
Wheelbase	178 in	Available Beds	Two Twin
Torque	400 ft-lb	Refrigerator Type	Double Door Three Way
Refrigerator Size	6.7 cu ft	Convection Cooking	Yes
Number of Awnings	1	LP Tank Capacity	13.2 gals
Water Heater Type	Truma AquaGo Comfort Plus	AC BTU	15000 btu
Basement Storage	48 cu. ft.	TV Info	28" TV
Awning Info	Powered Box w/LED Lights	Shower Type	Standard
VIN	1FDRU8PG3MKA86682

Description

Leisure Travel Wonder Class B+ gas motorhome 24FTB highlights:

Rear Full-Size Lavatory
Front Convertible Twin Beds
Multi-Use Front Area
Removable Dinette
Swivel Captain's Chairs

Once you enter mid-coach, you will find this Wonder to be spacious and inviting with style and quality found throughout. The front area just behind the swivel captain's chairs offers two 32" x 76" twin beds that convert to a 64" x 76" sleeping space if you like, plus there is a removable dinette making this area versatile for whatever you are wanting to do such as lounge, entertain, dine and/or sleep. And the large galley offers ample counter space, a convection microwave oven, a flush mount LP cooktop with hinged glass cover, a garbage can, and a double door, three-way refrigerator, plus an accessory rail. There is a wardrobe for storage near the twin beds, and the rear full-size lavatory provides a spacious private area to get cleaned up in and changed for whatever comes next. This unit is also available with optional intelligent All-Wheel Drive (AWD).

With any Leisure Travel Wonder Class B+ gas motorhome, the construction includes vacuum bonded aluminum framed insulated contoured sidewalls and a domed roof with fiberglass exterior, and a floor with composite exterior on a Ford Transit cutaway T-350 chassis. Some highlights include the 16" heavy-duty forged aluminum wheels, the auto high-beam headlamps, and the advance active safety features. The interior offers the SYNC 3 navigation system, curved soft close overhead cabinetry doors with hidden catches, full extension ball bearing soft close drawer tracks, LED aisle lighting and above cabinet hidden accent lights, and tile look vinyl flooring throughout for style and easy care. Don't just wonder where you want to go in style and luxury, choose your favorite Wonder coach and head out!

Call Us at 702-202-2601

Features

Standard Features (2022)

Chassis

Ford Transit Dual Rear Wheel Chassis (178" Wheelbase/11,000 lb. GVWR), 3.5 L Eco-Boost V6 Gas (310 HP/400 ft.·lb. Torque) with 10-Speed Automatic Transmission, Tow Haul Mode. Available with Optional Intelligent All-Wheel Drive (AWD).
250 A Alternator
Adaptive Cruise Control
Air Conditioning
Aluminum Alloy Wheels
Concealed Locking Fuel Filler
Driver and Passenger Exterior Courtesy Light
Fog Lamps
HID Headlamps
Illuminated Sun Visors
Multifunctional Steering Wheel with Tilt/Telescopic Function
Post-Collison Braking, Pre-Collision Assist with Auto Emergency Braking, Auto High Beam Headlamps, Lane Keeping System, Forward Collision Warning and Side Curtain Airbag
Power Windows and Door Locks
Power/Heated Exterior Mirrors with Convex and Turn Signal
Privacy Drape in Cab
Rear Hitch Receiver with 7-Pin Connector
Rear View Mirror
Remote Start
Removable Carpeted Floor Mat
SYNC® 3 8" Touchscreen Multimedia Center with AM/FM/SiriusXM/Navigation/Rear View Camera
Tire Pressure Monitoring System
Ultraleather® Cab Seats with Armrests/Adjustable Lumbar Support/Recline, 4-way Manual, Swivel Bases

*Note: Due to ongoing supply constraints, some Ford Transit features shown may not be available on all chassis.

Vehicular

2-Year Roadside Assistance
Powder Coated Steel and Aluminum Undercarriage Support Structure

Construction

Frameless Tinted All Glass Awning Style Windows
Vacuum Bonded Aluminum Framed Insulated Contoured Sidewalls with Fiberglass Exterior
Vacuum Bonded Aluminum Framed Insulated Domed Roof with Fiberglass Exterior
Vacuum Bonded Aluminum Framed Insulated Floor with Composite Exterior

Exterior

Chrome Automotive Style “LTV” Branding
Contoured Entrance Door with Screen Door and Window
Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches
Illuminated Assist Handle
Large Exterior Storage Compartment with Lights (FTB)
Large Pass Through Exterior Storage Compartment with Bicycle/Cargo Slide (RTB)
LED Patio Light
Painted Color Matched Front Bumper
Painted Fiberglass Running Boards and Flares
Painted Full Body with Clear Coat
Powered Retractable Entrance Step
Water Pump Switch in Utility Center

Interior

Coach Floor Extension (RL)
Curved Soft Close Overhead Cabinetry Doors with Hidden Catch
Dry Chemical Fire Extinguisher
Full Extension Ball Bearing Soft Close Drawer Tracks
Illuminated Assist Handle
LED Aisle Lighting and Above Cabinet Hidden Accent Lights
LED Ceiling Light Panels with Dimmer in Bedroom and Living Areas (RL)
LED Ceiling Lighting with Dimmer in Bedroom and Living Areas (RTB, FTB)
LED Recessed Strip Lighting Under Overhead Cabinets
Opening Skylight with Screen and Shade
Roller Shades
Smoke, LP and CO Detectors
Soft Vinyl Ceiling Headliner
Tile Look Vinyl Flooring Throughout

Furniture

Cloth Fabric Dinette with Flexible Seating/Dining Arrangements (FTB)
Ultraleather® Dinette with Flexible Seating/Dining Arrangements (RL, RTB)

Galley

Accessory Rail
Contoured Solid Surface Corian® Countertop
Convection Microwave Oven
Countertop Extension (RL, RTB)
Double Door, 3-way, 6.7 ft. Refrigerator Freezer
Flush Mount LP Cooktop with Hinged Glass Cover
Garbage Can
Pull-Out Pantry (RL, RTB)
Stainless Steel Backsplash
Stainless Steel Undermount Sink with Sink Cover

Lavatory

Accessory Rail
Ceramic Foot Flush Toilet with Hand Sprayer (FTB)
Ceramic Macerator Toilet (RL, RTB)
Flip Down Towel Bar in Shower
Grab Handle in Shower
Medicine Cabinet
Retractable Self Cleaning Shower Screen
Robe Hook in Shower
Shower with Integrated Storage
Shower Skylight
Stainless Steel Undermount Sink

Entertainment

Exterior Cable TV Hookup
Mobile Data/WiFi Extender with Integrated TV Antenna
Satellite Dish Pre-Wire
Smart Blu-ray Player
USB Outlets in Bed and Living Areas

Heating, Ventilating, and Air Conditioning

Furnace – 16,000 BTU
Lavatory Fan and Galley Fan
Low Profile 15,000 BTU Air Conditioner with Heat Pump

Electrical

120 V GFI Receptacle
(Patio, Galley, and Lavatory Protected)
12 V Battery Disconnect
2000 W Pure Sine Inverter with 80 A Battery Charger
30 ft. Power Cord – 30 A
Dual 6 V AGM Coach Batteries
MultiPlex Wiring Control System
Rear Storage 12 V Power Receptacle (RTB)
Surge Protector

Plumbing and LP Systems

Antifreeze Pick Up Kit
Black Tank Flushing System
Contained Sewer Hose
Exterior Shower
LP Tank
Multiple Water Pump Switches
Quick Connect Exterior Accessory LP Outlet
Tank Level, Battery Monitoring Panel
Truma AquaGo Comfort Plus Water Heater
Water Heater By-Pass Valve
Water Selector Valve (City Water or Water Tank Fill)

Awnings Packages

Powered Box Awning with LED Lights

Certifications

Canadian Certification – Mandatory for Canada (Optional)
RVIA Certification

Optional Equipment

AWD – Ford Transit Chassis with Intelligent All-Wheel Drive
Exterior Ladder – 2-piece
Exterior Table
Front Dinette inflatable Mattress Kit (RL, RTB)
Generator – 4.0 kW Onan Gas with Auto Start and Auto Changeover Switch (Mandatory Option)
Lithium Battery Upgrade – Dual 100 Ah 12 V Lithium Coach Batteries with Internal Heating System
Macerator – Termination with Manual Disconnect
Overhead Cabinet Door Upgrade – Bianco White FENIX NTM® Matte
Remote Key Fob Entry – Coach Entrance Door
Satellite – Auto Acquisition Winegard Road Trip 4 (DirectSD, DishHD, BellHD)
Solar Panels – Rigid Low Profile with control panel – 200 W
Solar Panels – Rigid Low Profile with control panel – 400 W

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Excellent service and customer care
We've had a number of RV's over the years and have had a number of service centers take care of them. We bought a B class Thor about a year ago and decided to give Van City RV a try after seeing some pretty good reviews. I have to say that they are probably the best service center around. Nina the

Helgo from Las Vegas, NV
We Wish We Could Give 10 Stars!
It all started when we called in a panic because our slide broke while we were on day 1 of our first big outing in our RV. Nina’s emotional support and over and above customer service through the phone was so appreciated and so dramatically different from the reaction we received from the dealer we

Jeanette from Nipomo, CA
Best service support
Nina, Service Manager, is knowledgeable, thorough and very friendly. She found parts for our Dometic cooktop that aren’t made anymore. The service representative, Joshua was also very competent and knowledgeable, he did a terrific job making three minor repairs to our 2018 LTV FX and kept me advised

Bruce from Hidden Valley, CA

We are here to help, call us at
702-202-2601 or Contact Us

We are here to help!

Van City RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at 800-467-3905 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2022 Leisure Travel Wonder 24FTB AWD

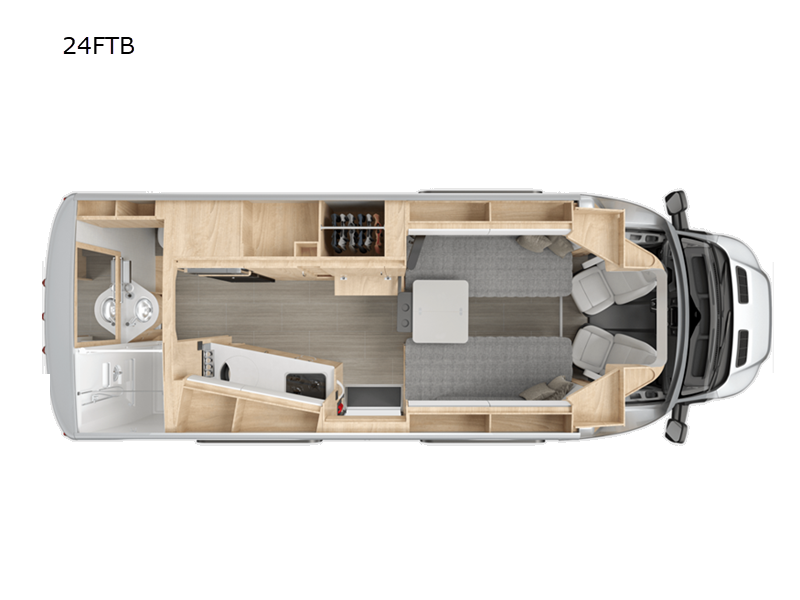

24FTB AWD Floorplan
