Used 2020 Dynamax Isata 5 30FW

Motor Home Super C - Diesel

Stock #6315

Las Vegas, NV

Managers Special!

1 of 6

Specifications

Sleeps	7	Slides	1
Length	32 ft 1 in	Ext Width	8 ft
Ext Height	12 ft 4 in	Interior Color	STONE
Exterior Color	CABERNET	Hitch Weight	10000 lbs
GVWR	19500 lbs	Fresh Water Capacity	78 gals
Grey Water Capacity	45 gals	Black Water Capacity	45 gals
Tire Size	225/70R19.5G	Furnace BTU	42000 btu
Fuel Type	Diesel	Miles	6782
Engine	Cummins 6.7L I6 Turbo	Chassis	Ram 5500 SLT
Horsepower	325 hp	Fuel Capacity	52 gals
Wheelbase	238 in	Number Of Bunks	1
Available Beds	Queen	Torque	750 ft-lb
Refrigerator Type	Residential Stainless Steel	Refrigerator Size	16 cu ft
Convection Cooking	Yes	Cooktop Burners	3
Number of Awnings	1	Axle Weight Front	7250 lbs
Axle Weight Rear	13500 lbs	LP Tank Capacity	20.3 gals
Water Heater Type	Truma AquaGo Comfort On Demand	AC BTU	30000 btu
TV Info	LR 39" LED TV, BR 32" LED TV, EXT 32" LED TV	Awning Info	16' Armless with LED Lights
Gross Combined Weight	37500 lbs	Shower Type	Standard
Electrical Service	50 amp	VIN	3C7WRNDL9LG269277

Call Us at 702-202-2601

Features

Standard Features (2020)

Chassis

Ram® 5500 SLT Chassis
Cummins® 6.7L I6 Turbo Diesel Engine (325hp/750 ft.-lbs. of Torque)
AISIN® HD 6-Speed Automatic Transmission
52-Gallon Fuel Tank
9-Gallon Diesel Exhaust Fluid Tank
Trailer Hitch (10,000 Tow lbs.) with 7-Way Round Tow Connection
Ram® OEM Trailer Brake Control
Cummins® Smart Exhaust Brake System
Ram® ESC Suspension and Stability Package
Momentary Battery Booster Switch for Connecting Chassis and House Batteries
Dual 12V Chassis Batteries
Dual 220-Amp Alternators (440 Total Amps)
4-Wheel ABS
B-20 Bio Diesel Capability
Ram® 50KSI Chassis Construction
Engine Block Heater
Aluminum Running Boards
Front and Rear Tires: 225/70R19.5G (All Position Front And Rear Traction)
Single Front Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
Dual Rear Wheels: Aluminum (19.5” x 6.0”) *Outside Rims are Polished
4.88 Rear Axle Ratio
Daytime Running Lights
Leatherette Reclining Driver and Passenger Seats with Armrest
Power Driver Seat
Backup and Side View Cameras
12V and USB Accessory Ports
Temperature/Compass Gauge with Traveler/Mini-Trip Computer
Cruise Control
8.4” Touch Screen Dash Radio with U-Connect®, Hands-Free Voice Command with Bluetooth®, Sirius/XM® Radio-Ready, Media Hub, (SD, USB, AUX), Apple® CarPlay™, Android® Auto™, and Six (6) Speakers
Adjustable Steering Column
Power and Heated Exterior Mirrors with Courtesy Lamps and Turn Signals
Power Windows and Locks
3-Point Seat Belts
Front Safety Airbags
Drink Holders

Construction

2” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
Gel-Coat Fiberglass Walls
Aluminum-Framed Floor
Aluminum-Framed Roof Trusses
Crowned, One-Piece Fiberglass Roof
Foil-Lined Ductwork Throughout
Fiberglass Front Cap, Rear Cap, and Front Wing Panels
Automatic, 4-Point Hydraulic Leveling Jacks
Dark-Tinted, Frameless Windows
Seamless Rotocast Storage Compartments with LED Lighting
Side-Hinged, Locking Aluminum Exterior Storage Doors with Paddle Latches
Electric Slide System

Exterior

Custom Full Body Paint Package
Premium Cut and Buffed Paint Finish
Front-End Diamond Shield® Paint Protection
Dual-Pitch, Armless Patio Awning with LED Lighting and Motion-Activated Retraction
Slideout Toppers
LED Patio Light
Entry Door with Rotary Latch; Dark-Tinted, Frameless Window; and Integrated Shade
Remote Locking System for Entry Door
Keyless Entry Touch Pad at Entry Door
Lighted Acrylic Entry Grab Handle
Power Entry Steps
Exterior Wall-Mounted Entertainment Center with 32” LED TV, AM/FM/CD/DVD Module, and Two (2) Speakers
Front and Rear LED Clearance and Marker Lighting
Rear LED Docking Lights

Interior

Front Cab-Over Bunk Area with Mattress (50” x 80”)
Premium Vinyl Flooring Throughout
Deluxe Carpet with Pad in Living Area Slide Room(s)
Soft-Touch Padded Vinyl Ceiling
LED Recessed Ceiling Lights
Booth Dinette
Coordinating Window Treatments
Blackout Roller Shades
Hardwood Shaker-Style Cabinetry
Full Extension, Soft-Closing Drawer Guides (Where applicable)
Hidden Hinges
39” LED TV (Living Area)
JBL® 2.1 Sound Bar with Smart Blu-Ray® Player (Living Area)
Entry with Non-Skid Rubber Steps and Risers
Privacy Curtain for Cab-Over Bunk
Thermal, Reflective Front Privacy Shades
USB Charging Ports

Kitchen

Sealed Gas Range with Glass Cover
16 cu. ft. Residential Refrigerator with Ice Maker (Double-Door and Stainless Steel)
Convection Microwave Oven
Solid Surface Countertops
Stainless Steel Double-Bowl Sink with Covers
Residential Stainless Steel Spring Gooseneck Faucet
Pantry (Floor plan specific)
Under-Cabinet Lighting
Kitchen Trash Can
MaxxAir® Power Vent with Built-In Rain Cover

Bedroom or Bunk Area

King Bed (67” x 75”) with Gel-Infused Memory Foam Mattress (36DS)
Queen Bed (60” x 75”) with Gel-Infused Memory Foam Mattress (35DB and 30FW)
Deluxe Padded Headboard (Floor plan specific)
Designer Bedding Package
32” LED TV
Cedar-Lined Wardrobe
LED Reading Lights
USB Charging Ports
Upper Bunk Bed (28” x 76”) and Lower Bunk Jackknife Sofa (35DB)
LED TV in Bunk Bed Area (35DB)

Bathroom

ABS Shower
Shower Skylight
Oxygenics Body Spa® RV Shower Head
Stainless Steel Sink with Residential Faucet
Porcelain Electronic-Flush Macerator Toilet (N/A – 30FW)
Porcelain Foot-Flush Toilet (30FW)
MaxxAir® Power Vent with Built-In Rain Cover

Utilities

Dual 12V Group 27 AGM Deep-Cycle, Maintenance-Free Batteries
Multiplex® Wiring with Touch Screen Command Center, Back-Lit Switch Panels, and Bluetooth® Smart Phone App Control
Battery Disconnect
50-Amp Service
2,800W Pure Sine Wave Inverter/Charger (3,900 Peak Watts)
8kW Onan® Diesel Generator with Auto Transfer Switch (Mounted on Isolator Pads)
Automatic Generator Start
Dual Ducted, Low-Profile 15,000-BTU Air Conditioners with Heat Strip
42,000-BTU LP Furnace with Electronic Ignition
60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
Thermostatically-Controlled Heating and Cooling
20.3-Gallon LP Tank (WC)
LP Quick Connect
Water Filtration System
Exterior Shower in Service Bay
Exterior GFCI Receptacle
Winegard® ConnecT 2.0™ Dome Antenna (WiFi Extender, 4G LTE, Omnidirectional HD OTA, FM, SIM Card Port)
Cable TV/Satellite Hookup in Service Bay
Black Tank Flush
Furnace-Heated Utility Compartment
Enclosed and Furnace-Heated Holding Tanks
Upgraded 12V On-Demand Water Pump (4 Gallons per minute)
Carbon-Monoxide, LP, and Smoke Detectors
Fire Extinguisher

Options

Factory 4-Wheel Drive (N/A – 35DB)
Solar Panels - Two 100 Watt with 30 Amp Controller
9 cu ft. 2-Way Refrigerator with Ice Maker in Place of Standard Refrigerator
Dual Reclining Theater Seats in Place of Sofa
Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD)
Mobileye® Collision Avoidance System
Rear “DYNAMAX” Rock Guard

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Always great!
I love that when I come in you all know who I am. You have taken care of my Van since I purchased it from you. The service crew is always friendly and very professional. The sales crew is also amazing. Van City is "the place". Thank you!!!!! Tana

Tana from Box Elder, SD
Best service support
Nina, Service Manager, is knowledgeable, thorough and very friendly. She found parts for our Dometic cooktop that aren’t made anymore. The service representative, Joshua was also very competent and knowledgeable, he did a terrific job making three minor repairs to our 2018 LTV FX and kept me advised

Bruce from Hidden Valley, CA
Wonderful experience at Van City, Las Vegas
This is where I bought my RV from Darrell (Manager), so they have been taking care of me since October 2019. I always get great service. Nina, Service, is fantastic and Allen G., who worked on my rig did a wonderful job. I highly recommend Van City!!

Tana from Box Elder, SD

We are here to help, call us at
702-202-2601 or Contact Us

We are here to help!

Van City RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at 800-467-3905 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2020 Dynamax Isata 5 30FW

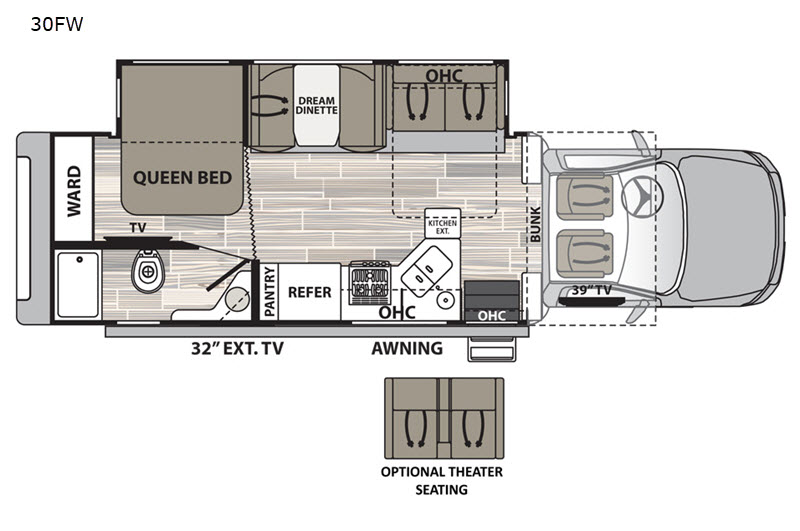

30FW Floorplan
