Used 2014 Dynamax Isata E Series IE282

Motor Home Class C

Stock #6536

Kalispell, MT

Managers Special!

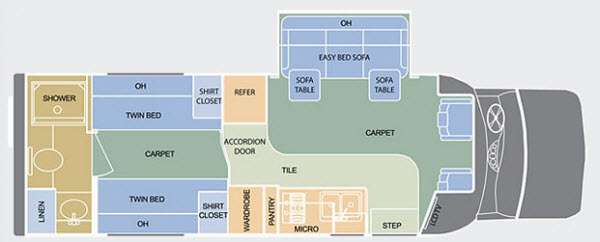

Floorplan - 2014 Dynamax Isata E Series IE282

1 of 61

+61

Our Price: $89,900
List Price: $100,000
Discount: $10,100

29ft long
Sleeps 4

1 slides
Triton V-10 305hp

See All Specs

Specifications

Sleeps	4	Slides	1
Length	28 ft 11 in	Ext Width	8 ft 5 in
Ext Height	10 ft 11 in	GVWR	14500 lbs
Fresh Water Capacity	34 gals	Grey Water Capacity	26 gals
Black Water Capacity	26 gals	Tire Size	LT225/75R x 16E
Furnace BTU	30000 btu	Fuel Type	Gas
Miles	29862	Engine	Triton V-10 305hp
Chassis	Ford E450	VIN	1FDXE4FS6DDA30629

Call Us at 406-755-1915

Features

Standard Features (2014)

Chassis

Engine: Ford E450 Ford 6.8L Triton V-10 gas
Horsepower: 305-hp at 3250 RPM
Torque: 420 lbs./ft. at 3250 RPM
Transmission: Five-speed torque-shift overdrive
Fuel tank: 55 gal.
Brakes: Power hydraulic disc (ABS)
Front axle: 4,600
Rear axle: 9,450
Suspension (front): Coil with stabilizer bar
Suspension (rear): DynaRide air suspension
Rear axle ratio: 4.56
Alternator: 135-amp
Chassis batteries: 12-volt, 650 CCA/72-am/hr.
Battery disconnect: under hood
Aluminum wheels: Optional
Tires: Six LT225/75R x 16E (spare optional)
Auxiliary driving lights
ICC lights: N/A

Exterior

Paint: Gold Finch (black & gold)/ Cabernet (burgundy)/ Desert Sand (tan)/ Sahara (taupe)/ Shadow Stone (black & silver)
Hydraulic jacks: Four-point semi-automatic leveling jacks (N/A IE235) (fully automatic optional)
Standard hitch: 5,000-lb. capacity
Standard awning: A&E box awning
Lighted grab handle
External storage: Rear trunk/fiberglass box and doors
Spare tire: Optional (hitch mount)
Power step at entry door
Exterior gas grill option

General Interior

Decor: Gold Finch (black & gold)/ Cabernet (burgundy)/ Desert Sand (tan)/ Sahara (taupe)/ Shadow Stone (black & silver)
Flooring: Deluxe sculpted carpet (living room & bedroom)/Armstrong (kitchen & bath)
Flooring option: Hardwood
Cabinets: Natural Cherry/Stained Cherry/Maple
Deluxe, hidden cabinet hinges
Posi-Lock door latches
TV: 23" LCD, cable-ready/ satellite-prepped (auto or in-motion King Dome optional)
Deluxe residential style lighting
Night floor lighting throughout
Standard sound system: Sony DVD/Surround Sound System
Optional sound system: Bose LS 18 DVD/Surround Sound System
Deluxe vinyl padded ceiling
Decor wallboard
Window shades: Day/night pleated
Valence: Interior matched fabric lambrequin
Standard sofa: Flexsteel EZ Bed (IE254, IE280, IE282)
Optional sofa: Hide-A-Bed with air mattress (std IE250), Lexington jack knife (IE235)
Fans: Fantastic (rain sensor optional)
Safety features: LPG-leak detector, 12-volt carbon-monoxide detector, smoke detector, fire extinguisher

Kitchen

Countertop: Corian large-double bowl sink with cover (single IE235)
Faucet: Single handle faucet with pull-out spray head
Cooktop: Gas two-burner (N/A IE235)
Convection microwave w/range fan (non convection/fan IE235)
Refrigerator: Dometic 8 cu. ft. (4 cu. ft. IE235) (10 cu. ft. optional)
Booth dinette with hardwood table (IE235, IE250)
Soft hardwood table (IE254, IE280, IE282)
120-volt outlet and phone jack (at dinette)
Flooring: Armstrong (hardwood optional)

Bathroom

Countertop: Corian lavatory top with integrated sink
Flooring: Armstrong (hardwood optional)
Deluxe medicine cabinet
One-piece fiberglass shower with skylight (skylight N/A IE235)
Toilet: Thetford china
Fantastic vent fan

Bedroom

Sleeping: varies by floorplan and options
Bedroom TV: Choice of 15" or 19"
Deluxe sculpted carpet
Hardwood wardrobes
Designer bedspread and pillows
Fantastic fan

Driver Compartment

Back up camera: B&W optional (two side rear view cameras optional)
GPS: Optional
Auxiliary 12-volt in-dash receptacle
Engine air conditioning
Cockpit driver chair: Lexington ultraleather - power
Passenger chair: Lexington ultraleather swivel (power optional)
Power driver and passenger windows
Power locks on cab entry doors
Intermittent windshield wipers
Radio: AM/FM/CD
Mirrors: Black heated/remote
Tilt and telescoping steering column
Cruise control
Safety airbags: Driver and right front passenger
Manual air-dump switch
Full front cab sound insulation
CB radio: Optional
Overhead directional reading lights
Dash instrumentation: Speedometer, fuel level, odometer, trip odometer, oil pressure, volt meter
Rear sonar: Optional
Tire air pressure monitor: Optional

Construction Headlights

Floor: Heavy-duty 3" E-coated steel floor frame mounted on rubber isolators
Walls: Sculptured, aerodynamic, fiberglass laminated sidewall panels
Aluminum framing: Square-tube aluminum-framed sidewall with all wall penetrations box framed
Windows: Panoramic bonded, tinted
Roof: Square-tube aluminum-framed, one-piece radiused fiberglass
Insulation (floor): R-11 solid block foam
Insulation (sidewall & ceiling): R-8 solid block foam
Cab: Steel safety cage surrounding transition from cab to coach
Front transition aerodynamic fiberglass
Molded-fiberglass rear-body cap
Slide-outs: Living room (IE250/IE254 electric/IE280/IE282 hydraulic), bedroom electric, with side cross flow vent windows

Utilities

Coach batteries: Two (2) Group 31 AGM, 210-amp/hr.
Inverter: 1000 watt power (2000 watt optional)
Power cord: 50-amp
Generator: Onan 4.0
Coach battery disconnect switch by entry door
Chassis battery disconnect switch under hood
Furnace: 30,000 BTU Suburban LP-gas
Thermostat: Single, digital thermostat for heating & cooling
Cooling: Single, low profile air conditioner - 13,500 BTU (15,000 BTU with heat pump optional)
Insulated ceiling air ducts with controllable air vents
Water heater: Six-gal. Suburban LP-gas
Water pump: 12-volt hi-capacity water pump
Heated water and holding tanks

See us for a complete list of features and available options.

All features and specifications are subject to change.
