New 2025 Roadtrek Westfalia Wave Skylight

Motor Home Class B

Stock #6252

Colorado Springs, CO

NEW ARRIVAL

1 of 36

+36

SALE PRICE: $139,988
MSRP/Build Sheet: $184,542
Save: $44,554

Sleeps 4

21ft Long
7,000 lbs
TIMBER WOLF GREY

See All Specs

Specifications

Sleeps	4	Length	20 ft 9 in
Ext Width	6 ft 11 in	Ext Height	9 ft 5 in
Int Height	6 ft 2 in	Interior Color	TIMBER WOLF GREY
Exterior Color	CERAMIC GREY	Hitch Weight	3500 lbs
GVWR	9350 lbs	Dry Weight	7000 lbs
Cargo Capacity	1243 lbs	Fresh Water Capacity	145 gals
Grey Water Capacity	99 gals	Black Water Capacity	18 gals
Furnace BTU	14300 btu	Fuel Type	Gasoline
Miles	87	Engine	3.6L V6
Chassis	Ram ProMaster 3500	Fuel Capacity	24 gals
Wheelbase	159 in	Available Beds	Queen
Refrigerator Type	12V	Refrigerator Size	3.2 cu ft
Cooktop Burners	2	Number of Awnings	1
LP Tank Capacity	30 lbs	Water Heater Type	Truma Combi
AC BTU	13500 btu	Awning Info	13' Power
Gross Combined Weight	11500 lbs	Shower Type	Wet/Bath Shower
VIN	3C6MRVJGXRE104068

Call Us at 719-377-6999

Features

Standard Features (2025)

Chassis

RAM Promaster 3500 159” EXT Van w/9 spd transmission
Engine: 3.6L Gas, V6
Advanced Safety: Park Assist, Adaptive Cruise Control w/Stop & Go, Driving Assist, 360 Surround View Camera, Lane Departure Warning Plus, Blind Spot and Cross Path Detection, Collision Warning, Power Heated Mirrors, Remote Start, Tire pressure Monitoring
HD Radio: Uconnect 5, 10.1” Display, Voice Command, Apple Car Play, Android Auto, Wireless Charging Pad, 4G LTE WI-FI Hotspot

Electrical

Coach Control System: Firefly Touch Control w/ Bluetooth & App
Batteries: 600 AMP Lithium
Under-Hood Generator
3000-Watt Power Inverter
Solar: 300 W
External Power Connection:110 V/ 30 AMP with detachable power cord
Detectors: Smoke, Propane and CO

Holding Tanks

Fresh Water Capacity: 145 L/38.3 U.S. GAL.
Black Water Capacity: 18 L/4.76 U.S. GAL.
Gray Water Capacity: 99L/26.4 U.S. GAL.
Sewage Disposal System: Cassette Toilet 4.76 g

HVAC

Combo Water & Furnace System: Truma LP Combi, Eco Plus 14,300 BTU/h + 1.7 kW with 110v
A/C: Truma Aventa Eco Roof Mount Air Conditioning, 13,500 BTU (Wave Skylight)
A/C: 110 V, 13,500 BTU roof mount (Wave Pop Top)
Propane: 25L/30LB LP Tank w/ Exterior Quick Connect

Kitchen

Dining: Front
Galley: Solid surface countertop with pop-out extension, combo stainless steel 2 burner/sink with cover
Adjustable Table: Adjustable Swivel Table
Refrigerator: 12 V, 3.2 CU FT. Compressor
Microwave: 110 V, 20 L/0.7 CU FT., 700W
Stove- Propane: Two burners recessed with flush cover and built-in igniter

Bathroom

Bathroom: Wet bath with cassette toilet, sink and shower
Outdoor Shower

Sleeping

Rear Sleeping KING (wxl) 71" x 69" or 80” (1803.4mm x 1752mm or 2032mm) Asymmetrical w/ opt Centre Aisle Bed Cushion Extension
Rear Sleeping QUEEN (wxl) Multiple Bed Configurations
Front Combination Bench/Bed (wxl) 39"x69" (990mm x 1752mm)
Pop Top Area: Ladder, Adjustable brightness LED light strip, 2 USB Ports, Zipper Window/ Screens & Venting Skylight (Wave Pop Top)
Pop Top Mattress: 52"x79" (1321mm x 2007mm) (Wave Pop Top)

Storage

Cabinets/Drawers: 17
Interior Trunk Dimensions: 61.7" L x 28.2" D x 29.8" H (1567.18mm x 716.28mm x 756.92) 300 Cu Feet

Media

Entertainment USB charge ports for your devices

Exterior

Steps: Power step at coach entry
Interior Windows: 10
Skylight: 1 - 17"x25" (431mm x 635mm) (Wave Skylight)
Awning: 13' Power
Screen Package: Heavy-duty multi-function bug screens for rear and sliding screen passenger side door

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Service Department
Nina, Allan and the rest of the staff in the Las Vegas VanCity Service Department are likely the most effective, efficient and customer centric employees of VanCity and probably the entire RV industry. Nina's ability to work and negotiate with extended warranty service providers, on a customer's behalf

Roland from Las Vegas, NV
Exceptional Customer Service
My wife and I contacted VanCity RV Kalispell for de-winterization service and we also had several questions regarding the 2010 Unity LTV RV we recently acquired. Kari, the office manager, was very kind and accommodating. She scheduled service and arranged for the Sales Manager to help us with our questions.

Tom from Whitefish, MT
Exceptional Service
I had a few issues with my RV and they were able to get the RV in the next day and resolved both.

Cheryl from Springville, UT

We are here to help, call us at
719-377-6999 or Contact Us

We are here to help!

719-377-6999
Contact Us
Get Lowest Price

;

Van City RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at 800-467-3905 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2025 Roadtrek Westfalia Wave Skylight

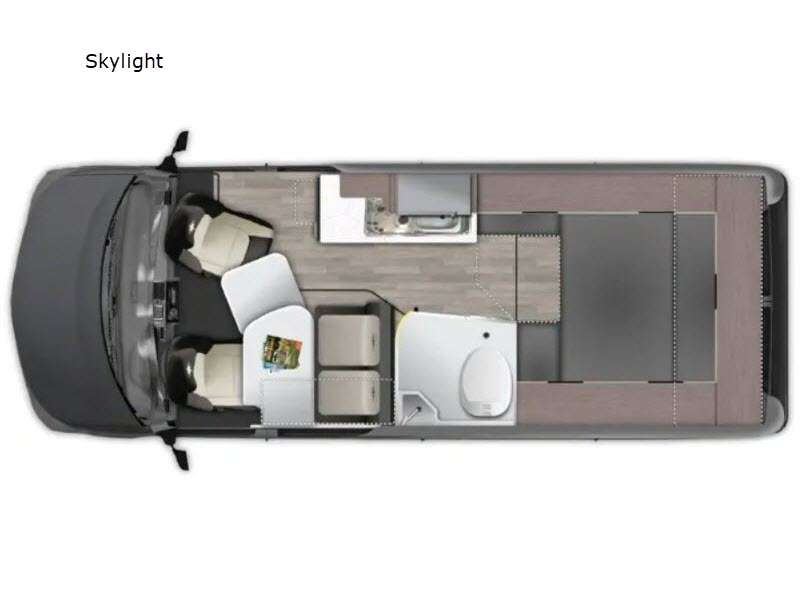

Wave Skylight Floorplan
