+6-
24ft long
-
9,380 lbs
-
Sleeps 2
-
6 Cylinder Diesel

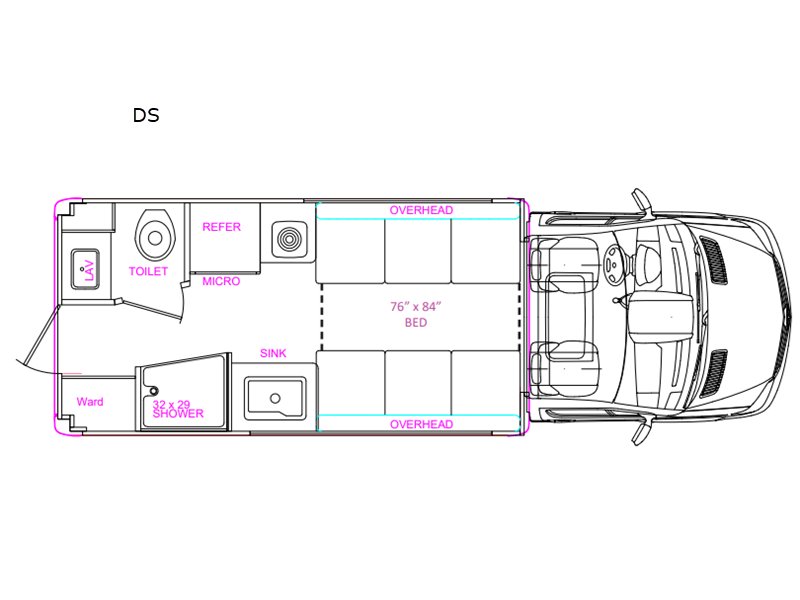

DS Floorplan
Specifications
| Sleeps | 2 | Length | 23 ft 9 in |
| Ext Width | 7 ft 4 in | Ext Height | 10 ft 6 in |
| Int Height | 6 ft 3 in | Interior Color | MAPLE |
| Exterior Color | WHITE | Hitch Weight | 5000 lbs |
| GVWR | 11030 lbs | Dry Weight | 9380 lbs |
| Cargo Capacity | 1049 lbs | Fresh Water Capacity | 30 gals |
| Grey Water Capacity | 24 gals | Black Water Capacity | 24 gals |
| Tire Size | 16" | Fuel Type | Diesel |
| Miles | 821 | Engine | 6 Cylinder Diesel |
| Chassis | Mercedes Benz Sprinter | Refrigerator Type | Dometic Gas/Electric |
| Refrigerator Size | 6 cu ft | Convection Cooking | Yes |
| Cooktop Burners | 1 | Shower Size | 39" x 29" |
| Number of Awnings | 1 | Axle Weight Front | 3624 lbs |
| Axle Weight Rear | 5756 lbs | LP Tank Capacity | 12.2 gals |
| Water Heater Type | Truma Combi Plus | AC BTU | 15000 btu |
| TV Info | LR 32" Samsung | Awning Info | 13' Carefree with LED Lighting |
| Gross Combined Weight | 16030 lbs | Shower Type | Standard |
| Electrical Service | 30 amp | VIN | W1X8N33Y3PN243273 |
Description
Chinook RV Summit DS Class B+ diesel highlights:
- Dual Sofas
- Private Toilet and Sink
- Removable Induction Cooktop
- Exterior Storage Boxes
- Lagun Table
- 400-Watt Solar Panel Capacity
Hit the road in true luxury with this motorhome! The separated bathroom makes it convenient for one to use the private toilet and sink while another cleans up in the 39" x 29" shower. There is also a wardrobe to keep your towels close by and a powered vent fan for ventilation with a rain sensor and reversible functions. This model includes dual sofas that can convert to a large king-size bed for a great night's rest. You can prepare delicious home cooked meals with a single induction cooktop which can be removed for exterior cooking, a Dometic 6 cu. ft. dual-swing motion doors refrigerator to store any leftovers, and a 1.1 cu. ft. stainless steel convection microwave to heat them up. The Entertainment Center package not only includes a 32" Samsung TV, but also a high performance JBL by Harman Aura in-wall media center with a JBL sub-woofer and JBL 6.5" Coaxial ceiling speakers.
Each one of these Chinook RV Summit Class B+ diesel motorhomes are powered by a Mercedes-Benz Sprinter chassis and a 6 cylinder diesel engine! These units are built sturdy for all-season functionality with steel tubing, a floor structure with a Hushmat thermo and moisture barrier on bottom, and a 16" O.C. truss-style aluminum rafter roof insulated with rolled fiberglass insulation which keeps you cool in the summer and warm in the winter. The dual pane frameless windows have an automotive design with openable sections and screens to let in some fresh air too. There is a Truma Combi-Plus heater system with an integrated water heater, plus a 15,000 BTU A/C to keep you comfortable year around.
Features
Standard Features (2025)
Chassis
- Mercedes-Benz Sprinter w/ 4-Cyl Twin-Turbo Diesel Engine
- 9 Speed Transmission
- Alcoa Aluminum Wheels
- Navigation
- Driver Convenience package
- Safety features including collision warning, lane keeping system & side-wind stabilization.
- 25 Gallon Fuel Tank
- Premium & Comfort Plus Packages
- Tow Package
Summit 360
- Truma Aventa 13.5 BTU A/C with Built in Dehumidifier
- Thermal Suppression System
- Timberline 1.0 Gas Fired Hydronic Heat & On-Demand Hot Water System
- Electronic Systems Solution by Wellspring Components
- Victron 3000-Watt Inverter w/ Charger & Cerbo Touch Screen Monitor
- 600-Watt Solar Panel System w/ Victron Solar Charger
- High output 2nd alternator w/ Gen Delete.
- Expion 360 900 amp/hr. Lithium Battery System (10.8 KWH)
- 4 Solar Panel Plug-in Ports in Exterior Side-Bay (480 Watts of Additional Solar Capability)
- .055 Aluminum Roof & Sidewall Skins Bonded w/ Sika Adhesive
- Full Body Paint w/ Painted Scheme
- Double Pane Automotive Design Windows w/ Openable Section & Screens
- 2" x 4" Welded Steel Subfloor Assembly, Mounted on Rubber Isolator Pads
- 1 Piece Composite Subfloor & 1 Piece Composite Roof
- 4-point Leveling System
- Norcold / Thetford 6.2 cu ft Electric
- Single Induction Cooktop, Removable for Exterior Cooking
- Smart Plug - Detachable 30 Amp Power Cord
- Solid Surface Countertops, Shower, & Porcelain Toilet
- Soft Touch, Padded Vinyl Finishing
Options
- 4 Camera System
- Online Package (Winegard Starlink System)
- Optional 3rd Expion 450 amp/hr
- Cummins Onan 3,200-Watt Diesel Generator
- Black Out Package (Black Wheels, A/T Tires, Black Handles)
- Cub Blind Spot Detection System
- AWD Mercedes Benz Sprinter Chassis
Exterior Colors
- By Paint Scheme
Interior Colors
- Maple
- Walnut Chiffon
- Nizza
- Cortana Beige
Floorplans
- Summit DS = Powered Single Sofa & Stationary Sofa
- Summit SS = Powered Single Sofa & Booth Dinette
- Summit EB = Eddy Bed Floorplan w/ Transformable Sofa/Dinette
Please see us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
