New 2024 Leisure Travel Unity U24RL

Motor Home Class B+ - Diesel

Stock #5452

Colorado Springs, CO

1 of 2

Specifications

Sleeps	3	Length	25 ft 1 in
Ext Width	7 ft 11 in	Ext Height	10 ft 6 in
Int Height	6 ft 5 in	Interior Color	SAND
Exterior Color	SHADOW	GVWR	11030 lbs
Fresh Water Capacity	25.6 gals	Grey Water Capacity	35 gals
Black Water Capacity	30.6 gals	Furnace BTU	20000 btu
Fuel Type	Diesel	Engine	2.0-L Turbocharged I-4 Diesel
Chassis	Mercedes-Benz Sprinter 3500	Horsepower	208 hp
Fuel Capacity	24.5 gals	Wheelbase	170 in
Available Beds	Murphy	Torque	332 ft-lb
Refrigerator Type	Three Way Double Door	Refrigerator Size	6.7 cu ft
Convection Cooking	Yes	Cooktop Burners	2
Number of Awnings	1	LP Tank Capacity	15.8 gals
Water Heater Type	Truma AquaGo Comfort Plus	Basement Storage	30 cu. ft.
TV Info	LR 32" Smart TV, BR 27" TV	Awning Info	Powered Legless Box w/Wind Sensor and LED Ligts
Shower Type	Standard

Description

The Leisure Travel Unity class B+ diesel motorhome U24RL highlights:

Rear Lounge Sofa
Murphy Bed
Generous Galley
Separate Living Spaces
Recessed Garbage Can

You will enjoy the two distinct living spaces with this Unity Class B+ diesel motorhome as you travel to all of your favorite locations. The dinette in front serves for dining and sleeping when converted into the optional front bed with the use of the front swivel captain's chairs for support. This is the perfect spot for when the grandchildren or guests come along. In back, you will find a comfortable lounge area with a 28" TV for inside entertainment plus a Murphy bed which easily converts the space into a bedroom that can be hidden away in the wall once morning arrives. The stainless steel convection microwave and the large pull-out pantry make it easy to create your delicious meals.

Each Unity Class B+ diesel motorhome by Leisure Travel sits on a durable Mercedes-Benz Sprinter 3500 dual rear wheel chassis with a 2.0-L Turbocharged I-4 diesel engine to power your adventures. The powder coated steel undercarriage support structure and vacuum-bonded construction provide a coach that will last for years, and there are eight sleek exterior paint options to make the coach your own. You'll love driving the Unity with its electronic stability control, adaptive cruise control, 9-speed automatic transmission with quieter noise levels and more comfort. There is even a digital mirror with sharp high-resolution that can be switched between convectional display and digital display for convenience. The luxurious interior includes Ultraleather furniture, a contoured solid surface Corian countertop in the kitchen, new decor options, plus many more comforts. And all of your power need will be met with dual 100 ah, 12V Lithium coach batteries with an internal heating system, plus a 2000W pure sine inverter and a 30 Amp power cord.

Call Us at 719-377-6999

Features

Standard Features (2024)

Chassis

Mercedes-Benz Sprinter 3500 Dual Rear Wheel Chassis (170'' Wheelbase, 11,030 lb GVWR), 2.0-L Turbocharged I-4 Diesel (208 hp, 332 ft·lb Torque) with 9G-Tronic Auto Transmission
Adaptive Cruise Control
Air Conditioning
Alternator – 250 A
Chrome Grille
Concealed Locking Fuel Filler
Digital Rear View Mirror
Driver and Passenger Exterior Courtesy Light
Driving Assist Package with Rain Sensing Wiper Assist, Active Braking Assist, Lane Keeping Assist, Traffic Sign Assist
Electronic Stability Control
Integrated Fog Lamps with Cornering Light Function
Leather-Wrapped Multifunctional Steering Wheel with Tilt/Telescopic Function
LED Headlamps with High Beam Assist
MBUX Touchscreen Multimedia Center with AM/FM, Navigation, Voice Control, Smart Phone Integration, and Rear-View Camera
Power Windows and Door Locks
Power/Heated Exterior Mirrors with Convex and Turn Signal
Power/Heated Ultrafabrics® Cab Seats with Armrests, Adjustable Lumbar Support, Recline, and Swivel Bases
Privacy Drape in Cab
Rear Hitch Receiver with 7-Pin Connector
Removable Rubber Floor Mat
Wheel Simulators

Vehicular

Chassis Battery Disconnect
Powder Coated Steel Undercarriage Support Structure

Construction

Dinette Slide out (MB, FX, CB)
Frameless Tinted All Glass Awning-Style Windows
Vacuum Bonded Aluminum-Framed Insulated Contoured Sidewalls with Fiberglass Exterior
Vacuum Bonded Aluminum-Framed Insulated Domed Roof with Fiberglass Exterior
Vacuum Bonded Steel-Framed Insulated Floor with Composite Exterior

Exterior

Chrome Automotive Style “LTV” Branding
Contoured Entrance Door with Screen Door and Window
Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches
Illuminated Assist Handle
Large Exterior Storage Compartment with Lights (MBL, MB)
Large Pass Through Exterior Storage Compartment with Light (TB)
LED Patio Light
Painted Color Matched Front Bumper
Painted Fiberglass Running Boards and Flares
Painted Full Body with Clear Coat
Powered Retractable Entrance Step
Water Pump Switch in Utility Center

Interior

Coach Floor Extension
Curved Soft Close Overhead Cabinetry Doors with Hidden Catch
Day/Night Roller Shades
Dry Chemical Fire Extinguisher
Full Extension Ball Bearing Soft Close Drawer Tracks
Illuminated Assist Handle
LED Above Cabinet Hidden Accent Lighting with Dimmer
LED Ceiling Light Panels with Dimmer in Bedroom and Living Areas
LED Recessed Strip Lighting Under Overhead Cabinets with Dimmer
Opening Skylight with Screen and Shade
Smoke, LP and CO Detectors
Soft Vinyl Ceiling Headliner
Tile Look Vinyl Flooring Throughout
Ultraleather® Wrapped Valances (MB, FX, CB, TB, IB)

Furniture

Ultraleather Booth Dinette with Easy-Lift Table (CB)
Ultraleather® Leisure Lounge Express Dinette (RL, TB)
Ultraleather® Leisure Lounge System Dinette with Flexible Seating and Dining Arrangements (MBL, MB, FX)
Ultraleather® Rear Sofa with 2 Power Recliners (RL)
Ultraleather® Rear Sofa with Hidden Table and Ottoman (FX)

Galley

Accessory Rail
Contoured Solid Surface Corian® Countertop
Convection Microwave Oven
Countertop Extension (MB, RL, TB)
12V Compressor Fridge w/Bottom Freezer Drawer
Flush Mount LP Cooktop with Hinged Glass Cover
Garbage Can (MBL, MB, RL, TB)
Pull Out Pantry
Stainless Steel Backsplash
Stainless Steel Undermount Sink with Sink Cover

Lavatory

Accessory Rail
Ceramic Foot Flush Toilet with Hand Sprayer (MB, FX, CB)
Ceramic Macerator Toilet (MBL, RL, TB)
Curved Glass Shower Door (MBL, MB)
Flip Down Towel Bar in Shower
Grab Handle in Shower
Medicine Cabinet with Towel Bar (MB, FX, CB, RL, TB)
Retractable Self Cleaning Shower Screen (FX, CB, RL, TB)
Robe Hook in Shower
Shower with Integrated Storage
Shower Skylight
Sink - Solid Surface Seamless (MB)
Sink - Stainless Steel Undermount Sink (MBL, FX, CB, RL, TB)
Water Pump Switch in Lavatory

Entertainment

Exterior Cable TV Hookup
Mobile Data/WiFi Extender with Integrated TV Antenna
Satellite Dish Pre-Wire
USB Outlets in Bed and Living Areas

Heating, Ventilating, and Air Conditioning

Air Conditioner – Truma Aventa Eco 13,500 BTU Ducted
Furnace – 19,000 BTU (MB, FX, CB, RL, TB)
Furnace – Truma Varioheat (MBL)
Lavatory Fan and Galley Fan

Electrical

120V GFI Receptacle (Patio, Galley, and Lavatory Protected)
12-V Battery Disconnect
2000W Pure Sine Inverter with 80 A Battery Charger
30 ft. Power Cord – 30 A
Dual 12-V Lithium Coach Batteries
Multiplex Wiring Control System (RL)
Surge Protector

Plumbing and LP Systems

Antifreeze Pick Up Kit
Black Tank Flushing System
Contained Sewer Hose
Exterior Shower
LP Tank
Multiple Water Pump Switches
Quick Connect Exterior Accessory LP Outlet
Tank Level, Battery Monitoring Panel
Truma AquaGo Comfort Plus Water Heater
Water Filtration System Water Heater By-Pass Valve
Water Selector Valve (City Water or Water Tank Fill)

Awning Packages

Powered Legless Box Awning with Wind Sensor and LED Lights
Slide Topper Awning (MBL, MB, CB, FX)

Certification

Canadian Certification – Mandatory for Canada (Optional)
RVIA Certification

Optional Equipment

Alcoa Dura-Bright® Aluminum ® Wheels (6) – Outer 4 Dura-Bright Finished
Exterior Ladder
Exterior Table
Front Dinette Inflatable Mattress Kit (RL, TB)
Generator – 3.6-kW Onan LP with Auto Start and Auto Changeover Switch
Jacks – 4 Point Leveling System Leisure Lounge Plus (MB)
Macerator – Termination with Manual Disconnect
Overhead Cabinet Door Upgrade – Bianco White FENIX® Matte
Remote Key Fob Entry – Coach Entrance Door
Removable Table between Captain’s Chairs (MBL, MB, FX, CB)
Safe
Satellite – Auto Acquisition Winegard Road Trip 4 (DirectSD, DishHD, BellHD)
Solar Panels – 200 W Rigid Low Profile with Control Panel
Solar Panels – 400 W Rigid Low Profile with Control Panel
U-Lounge Dinette (CB)

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Great service & understanding
My communications with Nina were always positive and full can-do. I spoke with a service gentleman when picking up our travel caravan, who took his time to explain the details of adding solar panels for added battery life. I now understand the pros and cons of battery solutions,…at least enough to shop

Cory from Vancouver, WA
Excellent service and customer care
We've had a number of RV's over the years and have had a number of service centers take care of them. We bought a B class Thor about a year ago and decided to give Van City RV a try after seeing some pretty good reviews. I have to say that they are probably the best service center around. Nina the

Helgo from Las Vegas, NV
The absolute BEST Service
Nina and Allen in the service department. We had the outside coach side door handle break on our LTV Serenity on a trip in the Las Vegas area and Nina was extremely responsive and proactive to find us a replacement and then do all she could to get it shipped to their shop. She had even given us the

Scott from Portland, OR

We are here to help, call us at
719-377-6999 or Contact Us

We are here to help!

Van City RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at 800-467-3905 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2024 Leisure Travel Unity U24RL

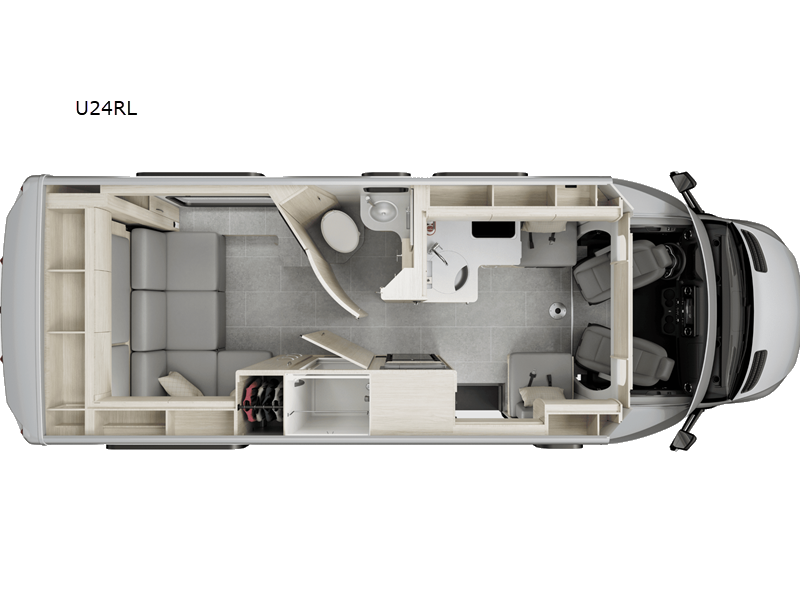

U24RL Floorplan
