New 2025 Dynamax isata 3 24SSSFXM

Motor Home Class C - Diesel

Stock #6061

St Louis, MO

NEW ARRIVAL

1 of 55

+55

Specifications

Sleeps	3	Slides	1
Length	25 ft 5 in	Ext Width	7 ft 10 in
Ext Height	11 ft 5 in	Interior Color	CRESCENT
Exterior Color	FREEDOM EDITION (DARK)	Hitch Weight	5000 lbs
GVWR	11030 lbs	Fresh Water Capacity	35 gals
Grey Water Capacity	32 gals	Black Water Capacity	32 gals
Tire Size	LT215/85 R16	Furnace BTU	20000 btu
Fuel Type	Diesel	Miles	653
Engine	2.0L I-4	Chassis	Mercedes-Benz Sprinter
Horsepower	211 hp	Fuel Capacity	24 gals
Wheelbase	170 in	Available Beds	Murphy
Torque	332 ft-lb	Refrigerator Type	12V Two Door Compressor Driven
Refrigerator Size	8 cu ft	Convection Cooking	Yes
Cooktop Burners	2	Number of Awnings	1
Axle Weight Front	4410 lbs	Axle Weight Rear	7720 lbs
Water Heater Type	Truma Combi D 6 E High Efficiency	AC BTU	15000 btu
Awning Info	16' Armless w/LED Lighting and Motion Activated Retraction	Gross Combined Weight	15250 lbs
Shower Type	Standard	Electrical Service	30 amp
VIN	W1X8N33YXPN260006

Description

Dynamax isata 3 Class C diesel motorhome Freedom Edition 24SSSFXM highlights:

Large Slide Out
Two Burner Induction Range
Additional 280 Amp Alternator
Three 190W Solar Panels
Booth Dinette

You'll love traveling in this Freedom Edition coach that comes with dual pane acrylic windows with built-in day/night shades and exclusive Freedom Edition full-body paint. There is also an insulated cab curtain, two low-temperature lithium house batteries, a 3,000W inverter/charger, and more features within this edition. The booth dinette and Murphy bed within the large slide out provide a place to relax, dine, and sleep, and the full rear bath is sure to be appreciated when it's time to freshen up. You'll find everything you need in the kitchen to make meals each day, including a two burner induction range, a convection microwave, plus a 12V 8 cu. ft. two-door compressor-driven refrigerator.

Each one of these Dynamax isata 3 Class C diesel motorhomes were designed to last for years of fun with composite exterior fiberglass with no exterior wood, aluminum-framed roof trusses, and composite flooring substrate. The 2.0L l-4 turbo diesel engine will power your adventures, and the Mercedes-Benz Sprinter chassis provides a durable foundation. There is an MBUX 10.25" infotainment system and a quad-view camera system that will let the driver navigate the open road like a pro, and the added safety features are sure to bring you peace of mind. Outside, you'll be wowed by the custom full-body paint package with front-end Diamond Shield paint protection, plus there are exterior speakers, an armless patio awning with LED lights, and seamless rotocast storage compartments for your gear! Each model also includes many interior comforts to make you feel right at home, like the premium vinyl flooring throughout, hardwood craftsman-style cabinetry, solid surface countertops with LED edge lighting and backsplash, and the list goes on!

Call Us at 314-894-3905

Features

Standard Features (2025)

Chassis

Mercedes-Benz® Sprinter Chassis (11,030-lbs. GVWR / 15,250-lbs. GCWR)
2.0L I4 Turbo Diesel Engine (211 hp / 332 lb-ft. of Torque)
9G-TRONIC PLUS Automatic Transmission with Overdrive
24.5-Gallon Fuel Tank
5.75-Gallon Diesel Exhaust Fluid Tank
Lane Keep Assist
Adaptive Cruise Control
Active Brake Assist
High-Beam Assist
Crosswind Assist
Attention Assist
Traffic Sign Assist
Rescue Assist
Electronic Stability Program (ESP)
Wet Wiper System
Trailer Hitch (5,000 Tow lbs. / 500 Tongue lbs.) with 7-Way Round Tow Connection
Momentary Battery Booster Switch for Connecting Chassis and House Batteries
Single 12V Chassis Battery
250-Amp Alternator
LED Brake, Turn, and Backup Lights
Fog Lights
Aluminum Running Boards
Bilstein® Gas-Charged Rear Shock Absorbers
Front and Rear Tires: LT215/85 R16
Single Front Wheels and Dual Rear Wheels (5.5" x 16")
Aluminum Wheels (Set of Four) with Valve Extensions
Banded Tire Pressure Monitoring System
4.727 Rear Axle Ratio
Power, Heated Leatherette Cab Seats with Swivel Bases
Quad-View Camera System (Right Side, Left Side, Hitch, and Rear Horizon Views)
MBUX (Mercedes-Benz User Experience) 10.25" Touch Screen Infotainment System with Navigation, AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and "Hey Mercedes" Voice Control
12V and USB-C Accessory Ports
Wireless Smartphone Charging Tray
Instrument Cluster with Color Display
Multifunction Steering Wheel
Adjustable Steering Column
Power Windows and Locks
Power Exterior Mirrors (Auto-Heated at Low Temperatures)
3-Point Seat Belts
Front, Thorax, & Window Safety Air Bags
Deluxe, Removable Automotive Cab Carpet Mat
Drink Holders

Construction

1 ½” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
Composite Exterior Fiberglass (No Exterior Wood)
Aluminum-Framed Floor
Composite Flooring Substrate (Lightweight & Moisture-Resistant)
Aluminum-Framed Roof Trusses
Crowned, One-Piece Fiberglass Roof
Fiberglass Rear Bumper
Foil-Lined Ductwork Throughout
Aerodynamic Fiberglass Front Wing Panels
Automatic, 4-Point Hydraulic Leveling Jacks with Bluetooth® Smart Phone App Control
Dark-Tinted, Frameless Windows
Seamless Rotocast Storage Compartments with LED Lighting
Locking Aluminum Exterior Storage Doors with Compression Latches
Electric Slide System

Exterior

Custom Full Body Paint Package
Premium Cut and Buffed Paint Finish
Front-End Diamond Shield® Paint Protection
Armless Patio Awning with LED Lighting and Motion-Activated Retraction
Slideout Topper(s)
LED Patio Light
Entry Door with Dark-Tinted, Frameless Window and Integrated Shade
Lighted Acrylic Entry Grab Handle
Power Entry Step with Upgraded SeaDek® Step Tread
Exterior TV Mount
Exterior Speakers
Front and Rear LED Clearance and Marker Lighting

Interior

Premium Vinyl Flooring Throughout
Soft-Touch Padded Vinyl Ceiling
LED Ceiling Lighting
Sprung, Residential-Style Dinette Seats with Lift Up Storage
Coordinating Window Treatments
Blackout Roller Shades (Steel Blind at Kitchen Window)
Hardwood Craftsman-Style Cabinetry
Full Extension, Soft-Closing Drawer Guides (where applicable)
Hidden Hinges
32" LED Smart TV (Living Area)
Stereo System - AM/FM with Zoned Speaker Control and Bluetooth® Smart Phone App Control
Easy Access Battery Compartment Beneath Entry Step
Entry with Non-Skid Rubber Step and Steel Risers
Thermal, Reflective Front Privacy Shades
USB Charging Ports
Cocktail Table Between Cab Seats
Cab Seat Booster Cushions (Set of Two)

Kitchen

12V 8 cu. ft. 2-Door Compressor-Driven Refrigerator
Gas Range with Glass Cover and Overhead Range Cover
Convection Microwave Oven
Solid Surface Countertops with LED Edge Lighting and Backsplash
Solid Surface Countertop Extension
Stainless Steel Sink with Solid Surface Cover
Residential Stainless Steel Spring Gooseneck Faucet
Overhead Cabinet Accent Lighting
Under-Cabinet Lighting
MaxxAir® Power Vent with Built-In Rain Cover

Bedroom

Queen Bed (60"x75") with Gel-Infused Memory Foam Mattress
Under-Bed Storage (24FW)
Deluxe Padded Headboard (24RW)
Designer Bedding Package
32" LED Smart TV (N/A 24SSSFX)
Cedar-Lined Wardrobe
LED Reading Lights
USB Charging Ports
Privacy Partition

Bathroom

Shower with Light-Weight, Soft-Sided Shower Door and Skylight
Oxygenics Body Spa® RV Shower Head
Stainless Steel Sink with Residential Faucet
Composite Foot-Flush Toilet with Hand Sprayer
MaxxAir® Power Vent with Built-In Rain Cover

Utilities

Dual Low-Temp Lithium Auxiliary Batteries (200aH Total)
Firefly® Multiplex Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
Battery Disconnect at Entry
30-Amp Service
2,000W Pure Sine Wave Inverter (3,300 Peak Watts)
3.6kW Onan® LP Generator with Auto Transfer Switch (Mounted on Isolator Pads)
Automatic Generator Start
Solar Panel - Single 190 Watt with 30 Amp Controller
Ducted, Low-Profile 15,000-BTU Air Conditioner with Heat Pump
20,000-BTU Furnace with Electronic Ignition
60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
20.3-Gallon LP Tank (WC)
LP Quick Connect
Water Filtration System
Exterior Shower in Service Bay
Exterior GFCI Receptacle
4x4 HDMI Matrix
Cable TV/Satellite Hookup
Prepped for Roof-Mounted Satellite (starting at SGC006816)
KING® Jack™ Directional OTA HDTV Antenna (starting at SGC006816)
60-Amp Progressive Dynamics Converter with Charge Wizard® System
Black Tank Flush
SureLevel® Tank Level Monitoring System
12V Heat Pads on Fresh, Gray, and Black Tanks
Water Management Valve for Fill and Winterizing
Upgraded 12V On-Demand Water Pump (4 gallons per minute)
Carbon-Monoxide, LP, and Smoke Detectors
Fire Extinguisher

Options

Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
Extended Fiberglass Front Cap with Cab-Over Bunk Mattress and Privacy Curtain (+179 lbs.)
Three-Seat, Power Reclining Theater Seats in Place of Dinette (24FW - Only Outer Seats are Powered) (+40 lbs.)
Dual, Power Reclining Theater Seats in Place of Dinette (24RW & 24SSSFX) (+40 lbs.)
Black Aluminum Wheels (Set of Four) with Metal Valve Extensions

Freedom Edition (24FWSFX &24SSSFX)

Exclusive Freedom Edition Full-Body Paint Scheme (Freedom Light or Freedom Dark)
Dual-Pane Acrylic Windows with Built-In Day/Night Shades (Delete Standard Valances & Slide-Out End Wall Windows)
Insulated Cab Curtain
Additional 280-Amp Alternator
Delete 3.6kW Onan® LP Generator - Replaced by Additional Alternator
Delete 20.3-Gallon LP Tank
Two Low-Temp Lithium House Batteries (620AH Total)
Three 190W (570W Total) Solar Panels with 30-Amp Controller
3,000W Pure Sine Wave Inverter/Charger
20,400-BTU Truma® Combi D 6 E - High-Efficiency Furnace & Water Heater (Diesel)
2-Burner Induction Range
50-Gallon Fresh Water Tank Relocated in Bed Base (24FWSFXM Only)

See us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Van City RV in Vegas rocks!
I love it that I can call Van City in Las Vegas and they always tell me what they can do to help me instead of the reasons why they can't help me! They are flexible when your plans change suddenly and they fit you in whenever it is possible. Plus, they are knowledgeable and able to troubleshoot a

Carolyn from Frisco, CO
Slide-out wouldn’t work
Throughout the entire process, from scheduling service to completion, Nina expressed complete confidence that her technicians would resolve the slide-out issue and would do so in specified period of time. And they did exactly that. Then once service was complete Clint explained what was done and then

Cindy from Wickenburg, AZ
Great people and great service
Nina is on it. She is very friendly and welcoming and gets things going the moment I walked in. Nina set the expectations of what is being done and when it will be completed and kept me updated regularly. The tech, Allan, is very knowledgeable and good at getting the work done.

Daniel from Las Vegas, NV

We are here to help, call us at
314-894-3905 or Contact Us

We are here to help!

314-894-3905
Contact Us
Get Lowest Price

;

Van City RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at 800-467-3905 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2025 Dynamax isata 3 24SSSFXM

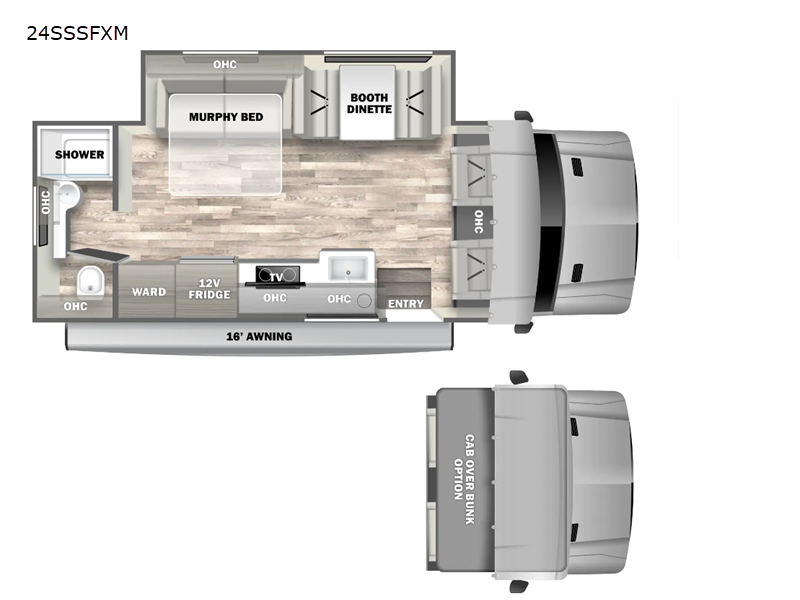

24SSSFXM Floorplan
