New 2023 Leisure Travel Unity U24MB

Motor Home Class B+ - Diesel

Stock #5156

Colorado Springs, CO

1 of 6

Specifications

Sleeps	2	Slides	1
Length	25 ft 1 in	Ext Width	7 ft 11 in
Ext Height	10 ft 6 in	Int Height	6 ft 5 in
Interior Color	SAND	Exterior Color	GRAPHITE
GVWR	11030 lbs	Fresh Water Capacity	25.6 gals
Grey Water Capacity	35 gals	Black Water Capacity	30.6 gals
Furnace BTU	16000 btu	Fuel Type	Diesel
Miles	30	Engine	3L V6
Chassis	Mercedes-Benz Sprinter 3500	Horsepower	188 hp
Fuel Capacity	24.5 gals	Wheelbase	170 in
Available Beds	Murphy	Torque	325 ft-lb
Refrigerator Type	Three Way Double Door	Refrigerator Size	6.7 cu ft
Convection Cooking	Yes	Cooktop Burners	2
Number of Awnings	1	LP Tank Capacity	15.8 gals
Water Heater Type	Instant	AC BTU	15000 btu
Basement Storage	55 cu. ft.	TV Info	Coach 40" Smart TV with Lift
Awning Info	Powered Direct Response System Box with LED Lights	Shower Type	Radius
VIN	W1X8N33Y3PN245797

Description

Leisure Travel Unity Class B+ diesel motorhome U24MB highlights:

Swivel Cab Seats
Leisure Lounge System
Murphy Bed
Residential Bathroom
Pop-Up TV
Multiplex Wiring Control System

With a large residential-style bathroom in this Unity Class B+ diesel motorhome, you will enjoy every moment you spend cleaning up in the radius shower, and the skylight above will deliver more height and extra sunshine to illuminate the entire space. During the day you can host friends and family with the swivel cab chairs and standard Leisure Lounge, or you can choose to add the optional Leisure Lounge Plus. Once the party has ended, you can rest peacefully for the evening after you've turned down the Murphy bed. The next morning you might decide to make breakfast on the cooktop or in the convection microwave and serve from the countertop extension or on the Corian solid-surface countertops.

Each Unity Class B+ diesel motorhome by Leisure Travel sits on a durable Mercedes-Benz Sprinter 3500 dual rear wheel chassis with a 3.0L V6 turbo diesel engine to power your adventures. The powder coated steel undercarriage support structure and vacuum-bonded construction provide a coach that will last for years, and there are eight sleek exterior paint options to make the coach your own. You'll love driving the Unity with its electronic stability control, adaptive cruise control, and driving assist package for added safety. The luxurious interior includes Ultraleather furniture, a contoured solid surface Corian countertop in the kitchen, new decor options, plus many more comforts. All of your power need will be met with dual 6V AGM coach batteries, plus a 2000W pure sine inverter and a 30 Amp power cord. And you can be sure to stay comfortable year around with a 16,000 BTU furnace and a low profile 15,000 BTU ducted A/C with a heat pump.

Call Us at 719-377-6999

Features

Standard Features (2023)

Chassis

Mercedes-Benz Sprinter 3500 Dual Rear Wheel Chassis (170" Wheelbase/11,030 lb GVWR)
220 A Alternator
3.0 L V6 Turbo Diesel (188 hp/325 ft·lb Torque) with 7-Speed Auto Transmission
Adaptive Cruise Control
Air Conditioning
Chrome Grille
Concealed Locking Fuel Filler
Driver and Passenger Exterior Courtesy Light
Driving Assist Package with Rain Sensing Wiper Assist/Active Braking Assist/Lane Keeping Assist/Traffic Sign Assist
Electronic Stability Control
Integrated Fog Lamps with Cornering Light Function
Multifunctional Steering Wheel with Tilt/Telescopic Function
LED Headlamps with High Beam Assist
MBUX Touchscreen Multimedia Center with AM-FM/Navigation/Voice Control/Smart Phone Integration/Rear View Camera
Passenger-Side Sun Visor Mirror
Power Windows and Door Locks
Power/Heated Exterior Mirrors with Convex and Turn Signal
Power/Heated Ultraleather® Cab Seats with Armrests/Adjustable Lumbar Support/Recline and Swivel Bases
Privacy Drape in Cab
Rear Hitch Receiver with 7-Pin Connector
Rearview Mirror
Removable Carpeted Floor Mat
Wheel Simulators

Vehicular

Chassis Battery Disconnect
Powder Coated Steel Undercarriage Support Structure

Construction

Dinette Slide out (MB, FX, CB)
Frameless Tinted All Glass Awning-Style Windows
Vacuum Bonded Aluminum-Framed Insulated Contoured Sidewalls with Fiberglass Exterior
Vacuum Bonded Aluminum-Framed Insulated Domed Roof with Fiberglass Exterior
Vacuum Bonded Steel-Framed Insulated Floor with Composite Exterior

Exterior

Chrome Automotive Style “LTV” Branding
Contoured Entrance Door with Screen Door and Window
Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches
Illuminated Assist Handle
Large Pass Through Exterior Storage Compartment with Light (TB, IB)
LED Patio Light
Painted Color Matched Front Bumper
Painted Fiberglass Running Boards and Flares
Painted Full Body with Clear Coat
Powered Retractable Entrance Step
Water Pump Switch in Utility Center

Interior

Coach Floor Extension (RL)
Curved Soft Close Overhead Cabinetry Doors with Hidden Catch
Day/Night Roller Shades
Dry Chemical Fire Extinguisher
Full Extension Ball Bearing Soft Close Drawer Tracks
Illuminated Assist Handle
LED Above Cabinet Hidden Accent Lighting
LED Ceiling Light Panels with Dimmer in Bedroom and Living Areas (RL)
LED Ceiling Lighting with Dimmer in Bedroom and Living Areas (MB, FX, CB, TB, IB)
LED Recessed Strip Lighting Under Overhead Cabinets
Opening Skylight with Screen and Shade
Smoke, LP and CO Detectors
Soft Vinyl Ceiling Headliner
Tile Look Vinyl Flooring Throughout
Ultraleather® Wrapped Valances (MB, FX, CB, TB, IB)

Furniture

Ultraleather® Leisure Lounge Express Dinette with Leaf Extensions (RL, TB, IB)
Ultraleather® Leisure Lounge System Dinette with Flexible Seating and Dining Arrangements (MB, FX)
Ultraleather® Rear Sofa with 2 Power Recliners (RL)
Ultraleather® Rear Sofa with Hidden Table and Ottoman (FX)

Galley

Accessory Rail
Contoured Solid Surface Corian® Countertop
Convection Microwave Oven
Countertop Extension (MB, RL, TB, IB)
Double Door, 3-way, 6.7 ft3 Refrigerator Freezer
Flush Mount LP Cooktop with Hinged Glass Cover
Garbage Can (MB, RL, TB, IB)
Pull Out Pantry
Stainless Steel Backsplash
Stainless Steel Undermount Sink with Sink Cover

Lavatory

Accessory Rail
Ceramic Foot Flush Toilet with Hand Sprayer (MB, FX, CB)
Ceramic Macerator Toilet (RL, TB, IB)
Curved Glass Shower Door (MB)
Flip Down Towel Bar in Shower
Grab Handle in Shower
Medicine Cabinet with Towel Bar
Retractable Self Cleaning Shower Screen (FX, CB, RL, TB, IB)
Robe Hook in Shower
Shower with Integrated Storage
Shower Skylight
Sink Stainless Steel Undermount Sink (FX, CB, RL, TB, IB)
Solid Surface Seamless Sink (MB)

Entertainment

Exterior Cable TV Hookup
Mobile Data/WiFi Extender with Integrated TV Antenna
Satellite Dish Pre-Wire
Smart Blu-Ray Player
USB Outlets in Bed and Living Areas

Heating, Ventilating, and Air Conditioning

16,000 BTU Furnace
Lavatory Fan and Galley Fan
Low Profile 15,000 BTU Ducted Air Conditioner with Heat Pump

Electrical

120V GFI Receptacle (Patio, Galley, and Lavatory Protected)
12 V Battery Disconnect
2000W Pure Sine Inverter with 80 A Battery Charger
30 ft Power Cord – 30 A
Dual 6V AGM Coach Batteries
Multiplex Wiring Control System (RL)
Surge Protector

Plumbing and LP Systems

Antifreeze Pick Up Kit
Black Tank Flushing System
Contained Sewer Hose
Exterior Shower
LP Tank
Multiple Water Pump Switches
Quick Connect Exterior Accessory LP Outlet
Tank Level, Battery Monitoring Panel
Truma AquaGo Comfort Plus Water Heater
Water Filtration System
Water Heater By-Pass Valve
Water Selector Valve
(City Water or Water Tank Fill)

Awning Packages

Powered Box Awning with Wind Sensor and LED Lights
Slide Topper Awning (MB, CB, FX)

Certification

Canadian Certification – Mandatory for Canada (Optional)
RVIA Certification

Optional Equipment

Alcoa Dura-Bright® Aluminum Wheels (6) – Outer 4 Dura-Bright® Finished
Exterior Ladder – 2 piece
Exterior Table
Front Dinette Inflatable Mattress Kit (RL, TB, IB)
Generator – 3.2 kW Onan Diesel with Auto Changeover Switch (MB, FX, CB, TB, IB)
Generator – 3.6 kW Onan LP with Auto Start and Auto Changeover Switch
Jacks – 4 Point Leveling System
Leisure Lounge Plus (MB)
Lithium Battery Upgrade – Dual 100 Ah 12 V Lithium Coach Batteries with Internal Heating System
Macerator – Termination with Manual Disconnect
Overhead Cabinet Door Upgrade – Bianco White FENIX NTM® Matte
Remote Key Fob Entry – Coach Entrance Door
Removable Table between Captain’s Chairs (MB, FX, CB)
Safe
Satellite – Auto Acquisition Winegard Road Trip 4
(DirectSD, DishHD, BellHD)
Solar Panels – Rigid Low Profile with control panel – 200 W
Solar Panels – Rigid Low Profile with control panel – 400 W
U-Lounge Dinette (CB)

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Thanks for problem solving the house battery
Thanks to Steven in your Colorado Springs service department for walking me through the Main (House) Battery / Inverter reset procedure. Reset complete in a few minutes on the phone, step by step. Thank you so much for your time, and service!

Toby from Ranchos de Taos, NM
Renegade Super C roof leak/hydraulic jack issue
What I liked most about our experience at Van City was that everyone working there was very friendly and knowledgeable. Nina was welcoming and always knew what was going on at all times! Our tech John was great and fixed every concern we went in for. The facility was very clean. Would highly recommend!

Karen from Boulder City, NV
Great service & understanding
My communications with Nina were always positive and full can-do. I spoke with a service gentleman when picking up our travel caravan, who took his time to explain the details of adding solar panels for added battery life. I now understand the pros and cons of battery solutions,…at least enough to shop

Cory from Vancouver, WA

We are here to help, call us at
719-377-6999 or Contact Us

We are here to help!

Van City RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at 800-467-3905 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2023 Leisure Travel Unity U24MB

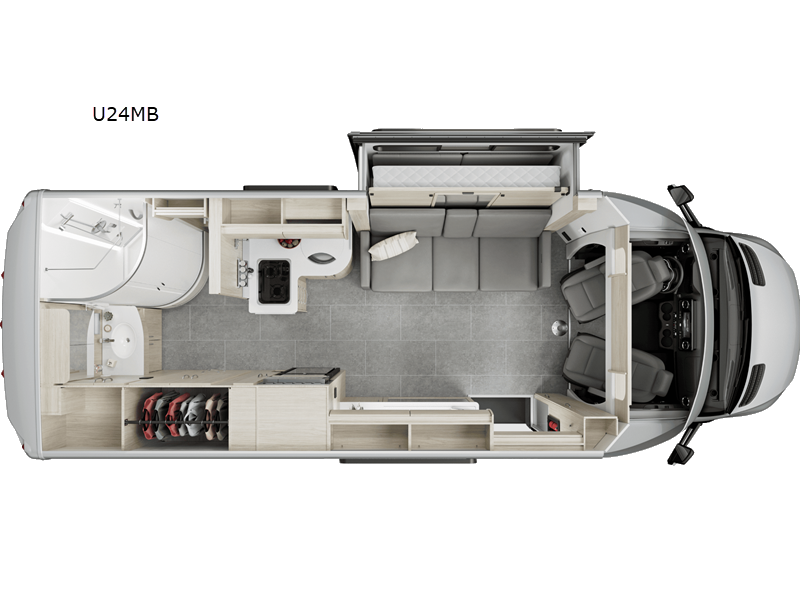

U24MB Floorplan
