New 2026 Leisure Travel Unity U24CB

Motor Home Class B+ - Diesel

Stock #U24CBMO

St Louis, MO

Reserve Yours Now!

1 of 17

+17

Call For Price!

25ft long
Sleeps 4
1 slides

2.0-L Turbocharged I-4 Diesel
208 HP

See All Specs

Specifications

Sleeps	4	Slides	1
Length	25 ft 1 in	Ext Width	7 ft 11 in
Ext Height	10 ft 6 in	Int Height	6 ft 4 in
Interior Color	Fog, Pebble, Coal	Exterior Color	Graphite, Denim, Bordeaux, Euro Sport, Champagne
GVWR	11030 lbs	Fresh Water Capacity	36.5 gals
Grey Water Capacity	35 gals	Black Water Capacity	30.6 gals
Furnace BTU	19000 btu	Fuel Type	Diesel
Engine	2.0-L Turbocharged I-4 Diesel	Chassis	Mercedes-Benz Sprinter 3500
Horsepower	208 hp	Fuel Capacity	24.5 gals
Wheelbase	170 in	Available Beds	Full
Torque	332 ft-lb	Refrigerator Type	12V Compressor Refrigerator w/Bottom Freezer
Convection Cooking	Yes	Cooktop Burners	2
Number of Awnings	1	LP Tank Capacity	15.8 gals
Water Heater Type	Truma AquaGo Comfort Plus	AC BTU	13500 btu
Basement Storage	31 cu. ft.	TV Info	LR 27" TV, BR 24" TV
Awning Info	Powered Legless Box w/Wind Sensor and LED Lights	Shower Type	Standard
VIN	TBD

Description

Leisure Travel Unity Class B+ diesel motorhome U24CB highlights:

Convection Microwave
Dinette+
Shower Skylight
USB Outlets
Exterior Shower

You can sleep four comfortably in this coach thanks to the 52" x 76" rear corner bed, and the dinette+, or you might want to choose the optional leisure lounge. The galley includes a stainless steel sink, a two burner cooktop, plus a pull-out panty and a 12V compressor refrigerator for food storage. The rear corner bath will allow you to stay clean throughout your many travels, and there is plenty of storage space for your essentials. You will also love the powered box awning with a wind sensor and LED lights for those late-night evenings outdoors with friends.

Each Unity Class B+ diesel motorhome by Leisure Travel sits on a durable Mercedes-Benz Sprinter 3500 dual rear wheel chassis with a 2.0-L Turbocharged I-4 diesel engine to power your adventures. The powder coated steel undercarriage support structure and vacuum-bonded construction provide a coach that will last for years, and there are eight sleek exterior paint options to make the coach your own. You'll love driving the Unity with its electronic stability control, adaptive cruise control, 9-speed automatic transmission with quieter noise levels and more comfort. There is even a digital mirror with sharp high-resolution that can be switched between convectional display and digital display for convenience. The luxurious interior includes Ultraleather furniture, a contoured solid surface Corian countertop in the kitchen, new decor options, plus many more comforts. And all of your power need will be met with 270-Ah 12V Lithium coach batteries with an internal heating system, plus a 3000W pure sine inverter and a 30 Amp power cord. If you choose the optional 60th Anniversary Edition, you will enjoy the Diamond White exterior paint, diamond-quilted upholstery, Cool Ice Ultrafabrics, matte black hardware, and more elegant features that are exclusive to this package!

Call Us at 314-894-3905

Features

Standard Features (2026)

Chassis

Mercedes-Benz Sprinter 3500 Dual Rear Wheel Chassis (170'' Wheelbase, 11,030 lb. GVWR), 2.0-L Turbocharged I-4 Diesel (208 hp, 332 ft. lb. Torque) with 9G-Tronic Auto Transmission
Adaptive Cruise Control
Alternator – 250 A
Chrome Grille
Concealed Locking Fuel Filler
Digital Rear View Mirror
Driver and Passenger Exterior Courtesy Light
Driving Assist Package with Rain Sensing Wiper Assist, Active Braking Assist, Lane Keeping Assist, Traffic Sign Assist
Electronic Stability Control
Integrated Fog Lamps with Cornering Light Function
Leather-Wrapped Multifunctional Steering Wheel with Tilt/Telescopic Function
LED Headlamps with High Beam Assist
MBUX Touchscreen Multimedia Center with AM/FM, Navigation, Voice Control, Smart Phone Integration, and Rear-View Camera
Power Windows and Door Locks
Power/Heated Exterior Mirrors with Convex and Turn Signal
Power/Heated Ultrafabrics® Cab Seats with Armrests, Adjustable Lumbar Support, Recline, and Swivel Bases
Privacy Drape in Cab
Rear Hitch Receiver with 7-Pin Connector
Removable Rubber Floor Mat
Tire Pressure Monitoring System
Wheel Simulators

Vehicular

Chassis Battery Disconnect
Powder Coated Steel Undercarriage Support Structure

Construction

Dinette Slide out (MBL, FX, CB)
Frameless Tinted All Glass Awning-Style Windows
Vacuum Bonded Aluminum-Framed Insulated Contoured Sidewalls with Fiberglass Exterior
Vacuum Bonded Aluminum-Framed Insulated Domed Roof with Fiberglass Exterior
Vacuum Bonded Steel-Framed Insulated Floor with Composite Exterior

Exterior

Chrome Automotive Style “LTV” Branding
Contoured Entrance Door with Screen Door and Window
Contoured Fiberglass Baggage Doors with Top Continuous Hinge and Draw Tight Latches
Illuminated Assist Handle
Large Exterior Storage Compartment with Lights (MBL)
Large Pass-Through Exterior Storage Compartment with Light (TB)
LED Patio Light
Painted Color Matched Front Bumper
Painted Fiberglass Running Boards and Flares
Painted Full Body with Clear Coat
Powered Retractable Entrance Step
Water Pump Switch in Utility Center

Interior

Coach Floor Extension
Curved Soft Close Overhead Cabinetry Doors with Hidden Catch
Day/Night Roller Shades
Dry Chemical Fire Extinguisher
Full Extension Ball Bearing Soft Close Drawer Tracks
Illuminated Assist Handle
LED Above Cabinet Hidden Accent Lighting with Dimmer
LED Ceiling Light Panels with Dimmer in Bedroom and Living Areas
LED Recessed Strip Lighting Under Overhead Cabinets with Dimmer
Opening Skylight with Screen and Shade
Smoke, LP and CO Detectors
Soft Vinyl Ceiling Headliner
Tile Look Vinyl Flooring Throughout
Ultraleather® Wrapped Valances (FX, CB, TB)

Furniture

Ultrafabrics® Dinette+ with Easy-Lift Table (CB)
Ultrafabrics® Leisure Lounge Express Dinette (RL, TB)
Ultrafabrics® Leisure Lounge System Dinette with 2 Power Recliners and Easy-Lift Table (MBL, FX)
Ultrafabrics® Rear Sofa with 2 Power Recliners (RL)
Ultrafabrics® Rear Sofa with Hidden Table and Ottoman (FX)
Ultrafabrics Swivel Lounge with 2 Tables (TBX)

Galley

Accessory Rail
Built-in Dish Drying Rack (MBL)
Contoured Solid Surface Corian® Countertop
Convection Microwave Oven
Countertop Extension (FX, CB, RL, TB, TBX)
Compressor Refrigerator Freezer - Double Door, 6.2 ft.
Garbage Can (MBL, RL, TB)
Induction Cooktop - 2 Burner
Pull Out Pantry
Stainless Steel Backsplash
Stainless Steel Undermount Sink with Sink Cover

Lavatory

Accessory Rail
Ceramic Foot Flush Toilet with Hand Sprayer (FX, CB)
Ceramic Macerator Toilet (MBL, RL, TB, TBX)
Curved Glass Shower Door (MBL)
Flip Down Towel Bar in Shower
Grab Handle in Shower
Medicine Cabinet with Towel Bar (FX, CB, RL, TB, TBX)
Retractable Self Cleaning Shower Screen (FX, CB, RL, TB, TBX)
Robe Hook in Shower
Shower with Integrated Storage
Shower Skylight
Sink - Stainless Steel Undermount Sink (MBL, FX, CB, RL, TB, TBX)
Water Pump Switch in Lavatory

Entertainment

Exterior Cable TV Hookup
Mobile Data/WiFi Extender with Integrated TV Antenna
Satellite Dish Pre-Wire
USB-A/USB-C Outlets in Bed and Living Areas

Heating, Ventilating, and Air Conditioning

Air Conditioner – Truma Aventa Eco 13,500 BTU Ducted with Soft Start and Heat Pump
Furnace – 19,000 BTU (FX, CB, RL, TB)
Furnace – Truma Varioheat (MBL, TBX)
Lavatory Fan and Galley Fan

Electrical

120V GFCI Protected Receptacle (Patio, Galley, and Lavatory Protected)
120V GFCI Protected Receptacle in Exterior Garage (TBX)
12-V Battery Disconnect
12-V Battery Storage Disconnect
3000-W Pure Sine Inverter with 150-A Battery Charger
30' Power Cord – 30 A
270-Ah 12-V Smart Lithium Coach Batteries with Internal Heating
Multiplex Wiring Control System
Surge Protector with Integrated Transfer Switch – Multiplex Integrated

Plumbing and LP Systems

Antifreeze Pick Up Kit
Black Tank Flushing System
Contained Sewer Hose
Exterior Shower
Liquid Propane Tank
Multiple Water Pump Switches
Quick Connect Exterior Accessory LP Outlet
Tank Level, Battery Monitoring Panel
Truma AquaGo Comfort Plus Water Heater
Water Filtration System Water Heater By-Pass Valve
Water Selector Valve (City Water or Water Tank Fill)

Awning Packages

Powered Legless Box Awning with Wind Sensor and LED Lights
Slide Topper Awning (MBL, CB, FX)

Certification

Canadian Certification – Mandatory for Canada (Optional)
RVIA Certification

Optional Equipment

All-Wheel Drive Mercedes-Benz Sprinter 3500 Cab Chassis (TBX)
Alcoa Dura-Bright® Aluminum Wheels (6) – Outer 4 Dura-Bright Finished
Alcoa Aluminum Wheels (6) – Black Finish (TBX & Desert Shadow Edition)
All-Terrain Tires (TBX & Desert Shadow Edition)
Battery Upgrade – Additional 270-Ah 12-V Smart Lithium Battery (540-Ah total)
Black Accent Package – Black Exterior Badging & Assist Handle, Black Interior Fixtures & Hardware
Desert Shadow Edition Décor Package – Includes Alcoa Aluminum Wheels (6) with Black Finish, Desert Shadow Badge, Black Exterior Badging & Assist Handle, Black Tail Light Bezels, Black Interior Fixtures & Hardware, Black Grille, Stone Overhead Cabinets & Backsplash
Exterior Ladder
Exterior Table
Exterior Entertainment Package (MBL)
Front Dinette Inflatable Mattress Kit (RL, TB)
Generator – 4.0 kW RVMP LP Generator with Auto Start and Auto Changeover Switch
Jacks – 4 Point Leveling System
Macerator – Termination with Manual Disconnect
Overhead Cabinet Door Upgrade – Crystal White (Matte Finish)
Removable Table between Captain’s Chairs (MBL, FX, CB)
Safe
Satellite – Auto Acquisition Winegard Road Trip 4 (DirectSD, DishHD, BellHD)
Secondary Alternator – 255A Battery Charging System (TBX AWD)
Solar Panels – 440 W Rigid Low Profile
Ultrafabrics® Leisure Lounge System Dinette with Power Reclining Chairs, Flexible Seating and Dining Arrangements (CB)

Optional Desert Shadow Edition

Canyon Exterior Paint
Desert Shadow Badging
Black Alcoa Aluminum Wheels
Black Leisure Travel Vans and Unity Badging
Matte Black Hardware
Mist Corian Countertop
Dune Ultrafabrics
Stone FENIX Overhead Cabinet Doors

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

Service work
Positive attitude and ability to repair our issues.

Dave from Las Vegas, NV
Great service and staff
Nina and Clint made me feel at ease.
Issues were taken care of efficiently and again staff was great

Andrew from
Best service ever
Nina and her staff went above and beyond to replace the canvas on our Thor van and we did not purchase it from them! Our dealer was lackadaisical in getting the parts for the repair, so, when they finally came in 9 months later, Nina said they would put them on saving us a 5 hour drive to the dealer.

Janet from Las Vegas, NV

We are here to help, call us at
314-894-3905 or Contact Us

We are here to help!

Van City RV is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer pictures, specifications, and features may be used in place of actual units on our lot. Please contact us at 800-467-3905 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

New 2026 Leisure Travel Unity U24CB

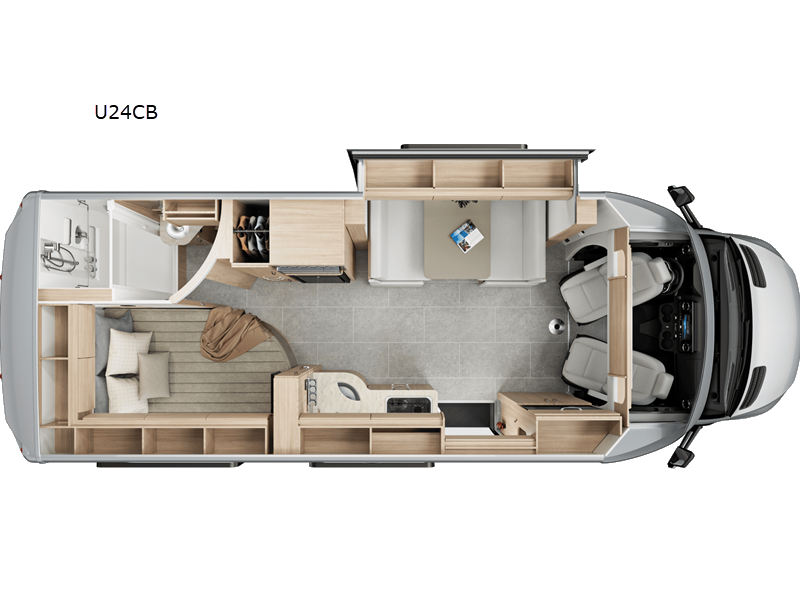

U24CB Floorplan
