+6 -
25ft long
-
Sleeps 3
-
1 slides
-
3.0L V6 Turbo Diesel
-
188 HP

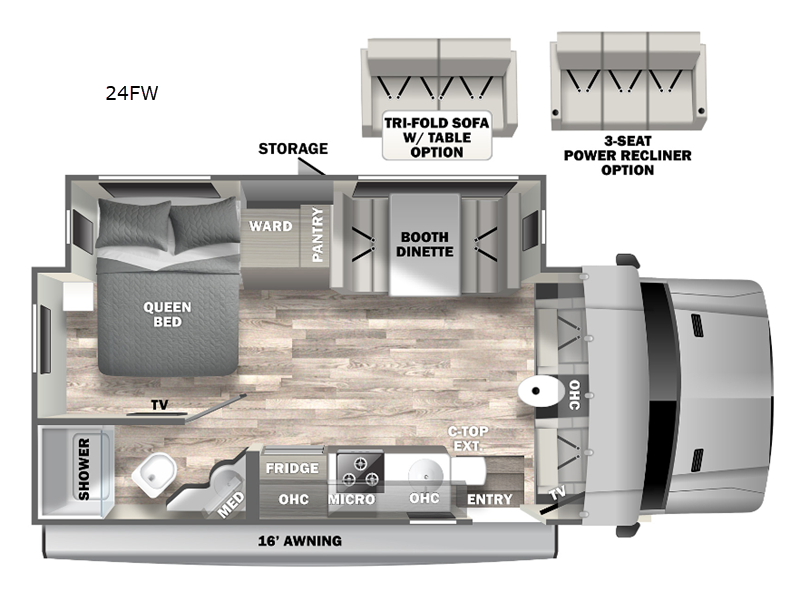

24FW Floorplan
Specifications
| Sleeps | 3 | Slides | 1 |
| Length | 24 ft 7 in | Ext Width | 7 ft 10 in |
| Ext Height | 11 ft 5 in | Exterior Color | KHAKI |
| Hitch Weight | 5000 lbs | GVWR | 11030 lbs |
| Fresh Water Capacity | 35 gals | Grey Water Capacity | 32 gals |
| Black Water Capacity | 32 gals | Tire Size | 16" |
| Furnace BTU | 20000 btu | Fuel Type | Diesel |
| Miles | 1827 | Engine | 3.0L V6 Turbo Diesel |
| Chassis | Mercedes Benz Sprinter | Horsepower | 188 hp |
| Fuel Capacity | 26 gals | Wheelbase | 170 in |
| Available Beds | Queen | Torque | 325 ft-lb |
| Refrigerator Type | Double Door | Refrigerator Size | 6 cu ft |
| Convection Cooking | Yes | Cooktop Burners | 3 |
| Number of Awnings | 1 | Axle Weight Front | 4410 lbs |
| Axle Weight Rear | 7720 lbs | LP Tank Capacity | 20.3 gals |
| Water Heater Type | Truma Aqua Go Comfort On Demand | AC BTU | 15000 btu |
| TV Info | LR 32" LED TV, BR 32" LED Smart TV | Awning Info | 16' Electric with LED Lights |
| Gross Combined Weight | 15250 lbs | Shower Type | Standard |
| Electrical Service | 30 amp | VIN | W1X8E33Y8NN187313 |
Description
Dynamax isata 3 Class C diesel motorhome 24FW highlights:
- Queen Bed
- Booth Dinette
- Rear Corner Bathroom
- Exterior Speakers
Take this motorhome on your greatest adventures yet! Start each morning feeling well rested after sleeping on the corner queen bed then head to the rear corner bathroom to freshen up in the shower with an Oxygenics body spa RV shower head and a skylight above for added headroom and natural lighting. Now that you're ready for the day, you can grab some eggs from the 6 cu. ft. double door refrigerator and fry them up on the three burner cooktop then enjoy them at the booth dinette. The kitchen also has a countertop extension for more meal prepping space and a convection microwave oven to pop a bag of popcorn before watching your favorite movies on either the living room 32" LED TV or the 32" LED smart TV across from the bed. You could even switch things up by replacing the booth dinette for either the optional tri-fold sofa with table or the optional three seat power recliner, and even add an optional cab over bunk too!
Each one of these Dynamax isata 3 Class C diesel motorhomes were designed to last for years of fun with an aluminum truss structured roof with a crowned, one-piece fiberglass skin! They are also constructed with gel-coat fiberglass walls with Azdel backing, 1 1/2" aluminum-framed, laminated sidewalls with block foam insulation, and an aerodynamic fiberglass front cap for better fuel efficiency. The 3.0L V6 turbo diesel engine is also fuel efficient and a Mercedes-Benz Sprinter chassis holds them together. The MBUX 10.25" infotainment system comes with navigation so you won't have to worry about getting lost, as well as AM/FM, Bluetooth, Sirius/XM, Apple CarPlay, and Android Auto so you can listen to your favorite tunes while driving down the highway. Come find the one that best fits your needs today!
Features
Standard Features (2023)
Chassis
- Mercedes-Benz® Sprinter Chassis
- 3.0L V6 Turbo Diesel Engine (188hp and 325 ft.-lbs. of Torque)
- 7G-TRONIC PLUS Automatic Transmission with Overdrive
- 26.4-Gallon Fuel Tank
- 5.75-Gallon Diesel Exhaust Fluid Tank
- Lane Keep Assist
- Adaptive Cruise Control
- Active Brake Assist
- High-Beam Assist
- Crosswind Assist
- Attention Assist
- Traffic Sign Assist
- Rescue Assist
- Electronic Stability Program (ESP)
- Wet Wiper System
- Trailer Hitch (5,000 Tow lbs.) with 7-Way Round Tow Connection
- Momentary Battery Booster Switch for Connecting Chassis and House Batteries
- Single 12V Chassis Battery
- 220-Amp Alternator
- LED Brake, Turn, and Backup Lights
- Aluminum Running Boards
- Bilstein® Gas-Charged Rear Shock Absorbers
- Aluminum Wheels (Set of Four) with Metal Valve Extensions
- Front and Rear Tires: LT215/85 R16
- Single Front Wheels and Dual Rear Wheels (5.5" x 16")
- Tire Pressure Monitoring System with Metal Valve Extensions
- 4.18 Rear Axle Ratio
- Power, Heated Leatherette Cab Seats with Swivel Bases
- Upgraded Multifunction Steering Wheel
- Upgraded Instrument Cluster with Pixel-Matrix Display
- Quad-View Camera System (Right Side, Left Side, Hitch, and Rear HorizoViews)
- MBUX (Mercedes-Benz User Experience) 10.25" Touch Screen Infotainment System with Navigation, AM/FM, Bluetooth®, Sirius/XM® (tuner and antenna), Apple® CarPlay™ / Android® Auto™ Functionality, and "Hey Mercedes" Voice Control
- 12V and USB Accessory Ports
- Adjustable Steering Column
- Power Windows and Locks
- Power Exterior Mirrors (Auto-Heated at Low Temperatures)
- 3-Point Seat Belts
- Front, Thorax, & Window Safety Air Bags
- Lockable Safe in Passenger Seat Base
- Deluxe, Removable Automotive Cab Carpet Mat
- Drink Holders
Construction
- 1 ½” Aluminum-Framed, Laminated Sidewalls with Block Foam Insulation
- Composite Exterior Fiberglass (No Exterior Wood)
- Aluminum-Framed Floor
- Composite Flooring Substrate (Lightweight & Moisture-Resistant)
- Aluminum-Framed Roof Trusses
- Crowned, One-Piece Fiberglass Roof
- Fiberglass Rear Bumper
- Foil-Lined Ductwork Throughout
- Aerodynamic Fiberglass Front Wing Panels
- Automatic, 4-Point Hydraulic Leveling Jacks with Bluetooth Smart Phone App Control
- Dark-Tinted, Frameless Windows
- Seamless Rotocast Storage Compartments with LED Lighting
- Locking Aluminum Exterior Storage Doors with Compression Latches
- Electric Slide System
Exterior
- Custom Full Body Paint Package
- Premium Cut and Buffed Paint Finish
- Front-End Diamond Shield® Paint Protection
- Armless Patio Awning with LED Lighting and Motion-Activated Retraction
- Slideout Topper(s)
- LED Patio Light
- Entry Door with Dark-Tinted, Frameless Window and Integrated Shade
- Lighted Acrylic Entry Grab Handle
- Power Entry Step
- Exterior TV Mount
- Exterior Speakers
- Front and Rear LED Clearance and Marker Lighting
Interior
- Premium Vinyl Flooring Throughout
- Soft-Touch Padded Vinyl Ceiling
- LED Ceiling Lighting
- Sprung, Residential Style Dinette Seats with Lift Up Storage
- Coordinating Window Treatments
- Blackout Roller Shades (Steel Blind at Kitchen Window)
- Hardwood Craftsman-Style Cabinetry
- Full Extension, Soft-Closing Drawer Guides (where applicable)
- Hidden Hinges
- 32” LED TV (Living Area)
- Stereo System - AM/FM/CD/DVD with Zoned Speaker Control and Bluetooth® Smart Phone App Control
- Easy Access Battery Compartment Beneath Entry Step
- Entry with Non-Skid Rubber Step and Steel Risers
- Thermal, Reflective Front Privacy Shades
- USB Charging Ports
- Cocktail Table Between Cab Seats
- Cab Seat Booster Cushions (Set of Two)
Kitchen
- 6.0 cu. ft. 2-Way Refrigerator (Double-Door)
- Gas Range with Glass Cover and Overhead Range Cover
- Convection Microwave Oven
- Solid Surface Countertops with LED Edge Lighting and Backsplash
- Solid Surface Countertop Extension
- Stainless Steel Sink with Solid Surface Cover
- Residential Stainless Steel Spring Gooseneck Faucet
- Under-Cabinet Lighting
- MaxxAir® Power Vent with Built-In Rain Cover
Bedroom
- Queen Bed (60” x 75”) with Gel-Infused Memory Foam Mattress
- Under-Bed Storage (24FW)
- Deluxe Padded Headboard (24RW)
- Designer Bedding Package
- 32” LED Smart TV
- Cedar-Lined Wardrobe
- LED Reading Lights
- USB Charging Ports
- Privacy Partition
Bathroom
- Shower with Light-Weight, Soft-Sided Shower Door and Skylight
- Oxygenics Body Spa® RV Shower Head
- Stainless Steel Sink with Residential Faucet
- Composite Foot-Flush Toilet with Hand Sprayer
- MaxxAir® Power Vent with Built-In Rain Cover
Utilities
- Low Temp Lithium (200aH) in Place of AGM Batteries
- Firefly Multiplex® Wiring with Touch Screen Command Center, Switch Panels, and Bluetooth® Smart Phone App Control
- Battery Disconnect at Entry
- 30-Amp Service
- 2,000W Pure Sine Wave Inverter (3,300 Peak Watts)
- 3.6kW Onan® LP Generator with Auto Transfer Switch (Mounted Isolator Pads)
- Automatic Generator Start
- Solar Panels - Single 190W with 30 Amp Controller
- Ducted, Low-Profile 15,000-BTU Air Conditioner with Heat Pump
- 20,000-BTU Furnace with Electronic Ignition
- 60,000-BTU Truma® Aqua Go Comfort™ On-Demand Water Heater (LP)
- 20.3-Gallon LP Tank (WC)
- LP Quick Connect
- Water Filtration System
- Exterior Shower in Service Bay
- Exterior GFCI Receptacle
- Winegard® AIR 360+ with Gateway Router (WiFi Extender, 4G LTE, Omnidirectional VHF/UHF OTA, FM, SIM Card Port)
- 4x4 HDMI Matrix
- Cable TV/Satellite Hookup
- 60-Amp Progressive Dynamics Converter with Charge Wizard® System
- Black Tank Flush
- TruTank® Level Monitoring (Measures in 5% Increments)
- 12V Heat Pads, Gray, and Black Tanks
- Water Management Valve for Fill and Winterizing
- Upgraded 12V On-Demand Water Pump (4 gallons per minute)
- Carbon-Monoxide, LP, and Smoke Detectors
- Fire Extinguisher
Options
- Aerodynamic Fiberglass Front Cap with Cab-Over Cabinets
- Extended Fiberglass Front Cap with Cab-Over Bunk Mattress and Privacy Curtain (+179 lb.)
- Winegard® In-Motion T4 Satellite (Dish® SD-HD, DirecTV® SD, BellTV® SD-HD) (+10 lb.)
- 3.2kW Onan® Diesel Generator in Place of Standard 3.6kW LP (+27 lb.)
- Dual, Power Reclining Theater Seats in Place of Dinette (+40 lb.)
New Option - Freedom Edition (24FWSFX)
- Exclusive Freedom Edition Full-Body Paint Scheme (Freedom Light or Freedom Dark)
- Dual-Pane Acrylic Windows with Built-In Day/Night Shades (Delete Standard Valances & Slide-Out Endwall Windows)
- Insulated Cab Curtain
- Additional 280-Amp Alternator
- Delete 3.6kW Onan® LP Generator - Replaced by Additional Alternator
- Delete 20.3-Gallon LP Tank
- Two Low-Temp Lithium House Batteries (620AH Total)
- Two 190W (380W Total) Solar Panels with 30-Amp Controller
- 3,000W Pure Sine Wave Inverter/Charger
- 20,400-BTU Truma® Combi D 6 E - High-Efficiency Furnace & Water Heater (Diesel)
- 12V 8 cu. ft. 2-Door Compressor-Driven Refrigerator
- 2-Burner Induction Range
- 50-Gallon Fresh Water Tank (Relocated in Bed Base)
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
