+23 -
25ft long
-
Sleeps 2
-
1 slides
-
3.5L EcoBoost V6

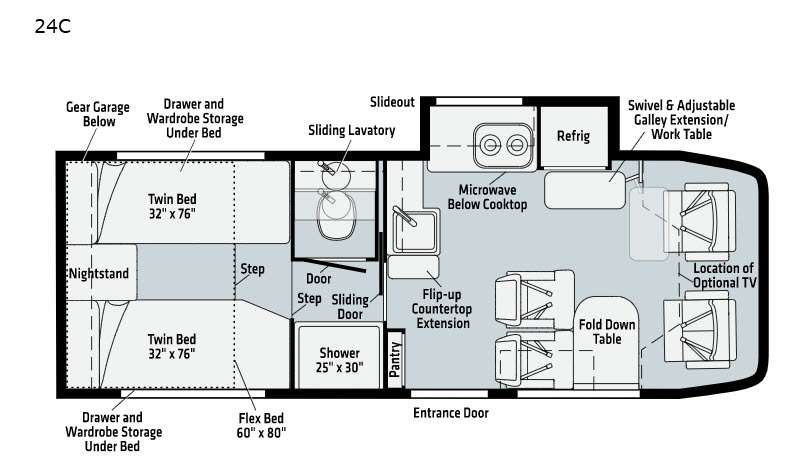

24C Floorplan
Specifications
| Sleeps | 2 | Slides | 1 |
| Length | 25 ft | Ext Width | 7 ft 3 in |
| Ext Height | 10 ft 6 in | Int Height | 6 ft 8 in |
| Interior Color | Raw Sienna, Verdant | Exterior Color | Boho with Weathered Teak, Veredis with Green Slate and Panarea |
| Hitch Weight | 5000 lbs | GVWR | 11000 lbs |
| Fresh Water Capacity | 50 gals | Grey Water Capacity | 30 gals |
| Black Water Capacity | 21 gals | Generator | Cummins Onan QG 2,800W |
| Fuel Type | Gasoline | Engine | 3.5L EcoBoost V6 |
| Chassis | Ford AWD Transit | Fuel Capacity | 31 gals |
| Wheelbase | 178 in | Available Beds | Two Twin |
| Refrigerator Type | Single Door 12V | Refrigerator Size | 5.3 cu ft |
| Cooktop Burners | 2 | Shower Size | 25" x 30" |
| Number of Awnings | 1 | Axle Weight Front | 4630 lbs |
| Axle Weight Rear | 7275 lbs | LP Tank Capacity | 40 lbs |
| Water Heater Type | Truma AquaGo Tankless Comfort Plus | Basement Storage | 60 cu. ft. |
| Awning Info | 13' Power with LED Lighting and Bluetooth Control | Gross Combined Weight | 15000 lbs |
| Shower Type | Standard | Electrical Service | 30 amp |
| VIN | TBD |
Description
Winnebago Ekko Class C gas motorhome 24C highlights:
- Sliding Lavatory
- Gear Garage
- Private Bedroom
- Adjustable Work Table
- Single Slide
- Separated Bathroom
This Ekko Class C gas motorhome has quite a bit that you are going to find interesting! The rear private bedroom has two twin-size beds with a nightstand in between. These beds have drawer and wardrobe storage beneath them, and they can also be transformed into a 60" x 80" flex bed. Out in front of the swivel/recline cab seats, you will find an adjustable work table that can serve as a work station for the driver's seat, or it can be used as an extended countertop in the kitchen. Additionally, there is a flip-up countertop extension at the other end of the kitchen. In front of the second set of automotive seats, you will find another fold-down table which can be used to create a dining location, and if you choose to add the optional TV at the front of the cab, these seats are going to provide the best views of the TV.
With the efficiency of a camper van, the capacity of a Class C coach, and the enhanced capability of AWD, the Winnebago Ekko Class C gas motorhome is ready to change the way you travel! You will be ready for all sorts of weather with the insulated water service center and heated holding tank compartment, and you will also be ready to camp just about anywhere with the three solar panels and Cummins Onan® QG 2,800W gas generator. The heated gear garage has an L-track cargo tie-down system, and the RAM Tough-Track mount is an innovative way to mount a variety of different devices. The Ekko also has some very accommodating features that are included in its list of options, like the optional batwing awning, pop-top sleeping area with FROLI sleep system, luggage rack, and exterior kitchen.
Features
Standard Features (2022)
Chassis
- Ford® AWD Transit Chassis
- 3.5L EcoBoost® V6 gas engine, 10-speed automatic Selectshift® transmission with overdrive
- 4-wheel anti-lock disc brakes
- High-intensity discharge (HID) headlamps
- Trailer hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
- Stylized performance wheels
- Spare tire
Cab Conveniences
- Radio/Rearview monitor system 8" colored multi-function touchscreen with SYNC®3, navigation, AM/FM stereo with HD/SiriusXM® capability, Bluetooth®, dual USB ports and integrated rear camera display
- Cab seats armrest, fixed lumbar support, headrest, recline, slide and swivel
- Airbags driver, passenger
- 3-point seat belts
- 2 cab seat lounge cushions
- Power door lock w/remote control
- Power windows
- Power mirrors w/defrost and turn signals
- Power assist steering w/tilt wheel
- Adaptive cruise control
- Lane-keeping assist
- Pre-collision assist w/Automatic Emergency Braking (AEB)
- Driver alert
- Automatic rain-sensing wipers
- Wiper activated headlamps
- Auto headlamps w/high beam control
- Blind spot monitoring
- Tire pressure monitoring system
- Sunvisors
- Cab mat
- Front wraparound curtain
- Thermal cab divider wall panel
Interior
- LED ceiling lights
- Tinted dual-pane euro acrylic windows w/cassette shades
- Dinette seating w/3-point seat belts
- Pull-up/fold down table
- Color touchscreen systems monitor panel
- Vinyl flooring throughout
- Satellite system ready
- Amplified digital HDTV antenna
- Roof wiring access port
- Assist bar
- RAM® Tough-Track™ Mount (dinette overhead)
- 110V, 12V, USB charging ports
- Deluxe powered ventilator fan w/remote
- Overhead accent lighting
Optional Interior Equipment
- Entertainment system smart Blu-ray disc player, Bluetooth® soundbar and 24" HDTV
- Front cab air mattress 30" x 65" w/support base, cordless pump, repair kit and storage bag
Galley
- Laminate countertops
- Microwave oven w/touch control
- Pantry
- 2-burner LP range cooktop w/cover
- 5.3 cu. ft. single door compressor-driven 12V refrigerator/freezer
- Stainless steel sink w/cover
- Adjustable/removable table/counter extension/workstation
Bath
- Medicine cabinet
- Oxygenics® shower head
- Dry/wet bath w/pivoting wall
- Robe hook(s)
- 24" x 30" Shower w/wall surround
- Shower curtain
- Molded round sink w/single control faucet
- Tissue holder
- Swiveling cassette toilet
Bedroom
- Twin beds w/WinnSleep™ System
- Flex bed kit
- Wardrobe/drawer storage below beds
- Metal clothes rod
- Room divider curtain
- Reading lights
- 110V, 12V, USB charging ports
Exterior
- Heated gear garage w/L-track cargo tie down system, 110V/12V charging ports and LED lighting
- Aluminum cab steps w/logoed tread and loop attachment (N/A w/pop-top)
- Powered patio awning w/LED lighting and Bluetooth® control
- Ladder (N/A w/pop-top)
- LED porch light w/interior switch
- Mud flaps
Optional Exterior Equipment
- Pop-top sleeping area w/FROLI® sleep system and 110V/USB charging ports (N/A w/luggage rack, exterior kitchen, aluminum cab steps or ladder)
- Batwing awning
- Luggage rack (N/A w/pop-top)
- Exterior kitchen w/chest style 12V refrigerator/freezer, 2-burner LP cooktop, flip-up counter extension, quick-connect faucet, collapsible sink, and LP quick-connect hose (N/A w/pop-top)
- Option to remove: Powered patio awning w/LED lighting and Bluetooth control
- Option to remove: Exterior graphics
Heating & Cooling System
- 13,500 BTU air conditioner
- Truma® VarioHeat™ comfort
Electrical System
- Auxiliary start circuit
- Automatic dual-battery charge control
- Coach battery disconnect system
- Dedicated second alternator to charge coach batteries
- Exterior AC duplex receptacle
- Exterior TV jack
- Cummins Onan® QG 2,800i gas generator
- 30-amp power cord
- (1) 320-amp-hour lithium ion battery w/Bluetooth control package and battery pack heating system
- (2) 170-watt and (1) 115-watt solar panel/battery charger
- 2,000-watt pure sine wave inverter/80-amp charger
Optional Electrical Equipment
- Option to remove: Cummins Onan QG 2,800i gas generator
- Add (1) additional 320-amp-hour lithium ion battery (Generator delete mandatory with this option)
Plumbing System
- Insulated water service center houses water center control panel, hooks, cable tv input, freshwater drain and portable satellite dish hook-up
- Truma AquaGo® tankless comfort plus water heater w/recirculation pump
- On-demand water pump
- Cold water purification system (galley only)
- Heated holding tank compartment
- 10' sewer hose
- Shower drain pump
- LPG accessory connection (patio area)
Safety
- LPG leak, smoke and carbon monoxide detectors
- Fire extinguisher
- Ground fault interrupter
- Upper and lower child seat tether anchors (dinette seating)
- High-mount brake lamps
- Fog lamps
Please see us for a complete list of features and available options.
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to Covid19 supply chain issues, some features and options shown may be temporarily substituted or removed.
