Nomad RVs Euphoria XL Motor Home Class C - Diesel RVs For Sale

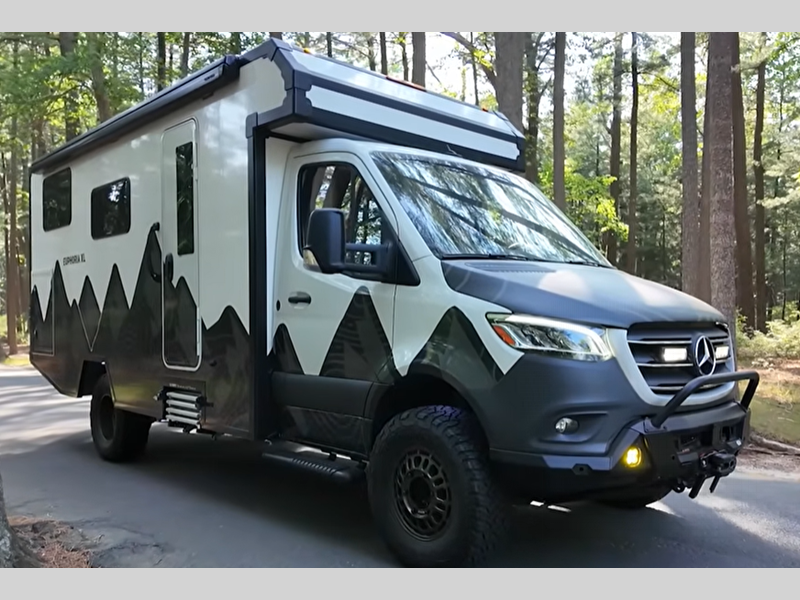

The Euphoria XL by Nomad RVs is perfect for weekend excursions or full-time living! This Class C diesel coach sits on a AWD Mercedes Sprinter 170 3500 chassis, with a 2.0L 4-cylinder diesel engine and 9G-Tronic 9-speed automatic transmission for an outstanding driving experience.
You will be impressed by all the gear you can fit in the large full pass-through storage, and there are aluminum entry steps leading into the unit that are adjustable for all terrains. A Tern Overland entry door is also included, along with a Girard 14' electric awning, a front bumper with a 12K winch, and more conveniences. Inside, you'll find a larger dinette than the Euphoria, a 79" standing height and all-aluminum cabinets, and either a queen bed or twin bed layout to fit your needs.
Your first step to adventure starts with the Euphoria XL Class C diesel coach by Nomad RVs!
-

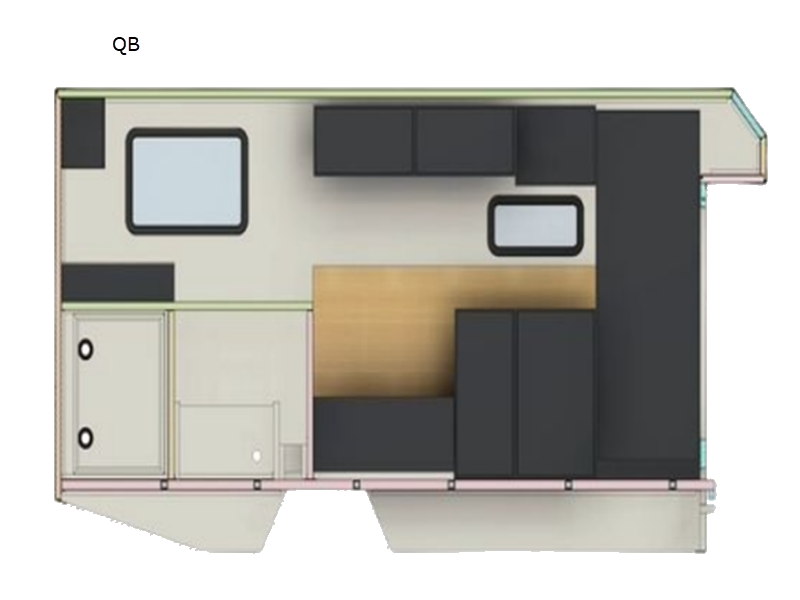

Euphoria XL QB
Nomad RVs Euphoria XL Class C diesel motorhome QB highlights: Queen-Size Bed Wet ... more about Euphoria XL QB
Specifications
Sleeps 2 Length 24 ft 6 in Ext Width 7 ft 2 in Ext Height 10 ft 8 in Int Height 6 ft 7 in GVWR 11030 lbs Fresh Water Capacity 50 gals Grey Water Capacity 31 gals Tire Size 295/70/R17 Fuel Type Diesel Engine 2.0L 4-Cylinder High Output Chassis Mercedes Sprinter 3500 AWD Wheelbase 170 in Available Beds Queen Refrigerator Type Nova Kool 6800 Fridge/Freezer Convection Cooking Yes Cooktop Burners 1 Shower Size 28" x 34" Number of Awnings 1 Water Heater Type Aqua Hot Hydronic Awning Info 14' Girard Electric w/Wind Sensor Shower Type Wet/Bath Shower -

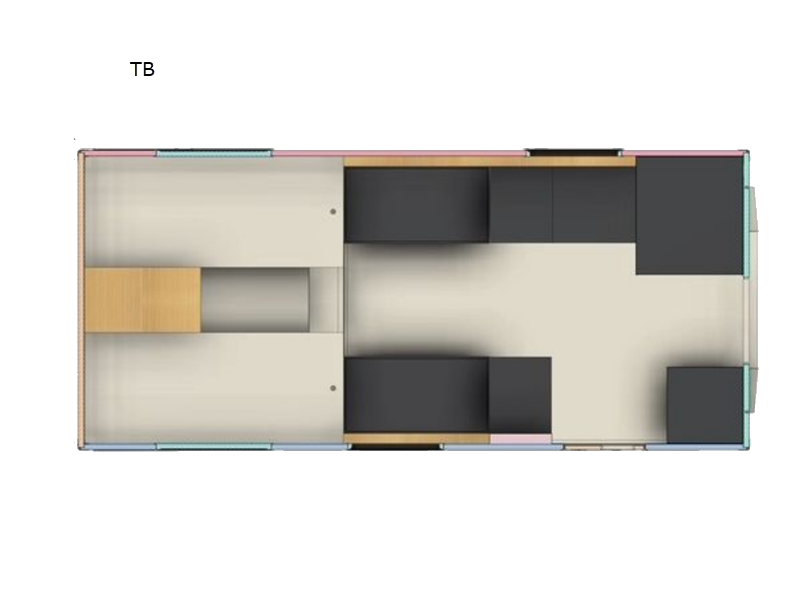

Euphoria XL TB
Nomad RVs Euphoria XL Class C diesel motorhome TB highlights: Two Twin Beds ... more about Euphoria XL TB
Have a question about this floorplan? Contact Us
Specifications
Sleeps 2 Length 24 ft 6 in Ext Width 7 ft 2 in Ext Height 10 ft 8 in Int Height 6 ft 6 in GVWR 11030 lbs Fresh Water Capacity 50 gals Grey Water Capacity 31 gals Tire Size 295/70/R17 Fuel Type Diesel Engine 2.0L 4-Cylinder High Output Chassis Mercedes Sprinter 3500 AWD Wheelbase 170 in Available Beds Two Twin Beds Refrigerator Type Nova Kool 6800 Fridge/Freezer Convection Cooking Yes Cooktop Burners 1 Shower Size 31" x 34" Number of Awnings 1 Water Heater Type Aqua Hot Hydronic Awning Info 14' Girard Electric w/Wind Sensor Shower Type Wet/Bath Shower Similar Floorplans
Euphoria XL Features:
Standard Features (2025)
Chassis & Performance
- AWD Mercedes Sprinter 170 3500 Chassis
- 2.0L 4-Cylinder Diesel Engine – High Output
- 9G-TRONIC 9-Speed Automatic Transmission
- Larger 295/70/R17 Super Single Rims/Tires
- 11,030 GVWR
- 1,600 OCCC
- Composite Camper Body
- Backup Camera
Exterior Features
- Dimensions:
- Body Height: 10’ 8”
- Body Width: 7’ 2”
- Overall Length: 24’ 6” (Excluding Rear Storage Box)
- Doors & Windows:
- Tern Overland Entry Door
- Dual Pane Windows with Blinds & Screens
- Entry & Storage:
- Aluminum Entry Steps (Adjustable for All Terrains)
- Large Full Pass-Through Storage (Width: 32” | Height: 36” | Length: 82”)
- Exterior Components:
- Girard 14’ Electric Awning with Wind Sensor
- Front Bumper with 12K Winch
- Rear Bumper with Spare Tire & Aluminum Storage Box
- Snorkel from S&B
Electrical System
- Battery & Power Management:
- 270Ah @ 48V Battle Born Lithium Battery
- 13.8 kWh System
- Victron Cerbo GX with 7” GX Touch Screen
- Victron Solar Controller
- MFCO AC/DC Fuse & Breaker Panel Victron 48/3000 Watt Inverter/Charger
- Outlets & Lighting:
- 12V DC and 120V AC Outlets
- (12) LED Puck Lights in Ceiling (Dimmable)
- Solar & External Power:
- 1,080 Watts of Solar
- Shore Power Smart Plug
- Secondary Alternator
Interior Details
- Living Space:
- Interior Standing Height: 79”
- Solid Surface Countertop
- All-Aluminum Cabinets
- 42” Dinette Benches with Table by Bed
- Storage & Appliances:
- Nova Kool 6800 Fridge/Freezer
- IF Queen Bed: 138” Upper Cabinet (Driver’s Side) / 72” Upper Cabinet (Passenger’s Side)
Plumbing System
- Water System:
- All Pex Pipes with Crimp Fittings
- 50-Gallon Fresh Water Tank (Inside)
- Water Pump on Switch
- Low Point Drain & Bypass Valve for Winterizing
- 31-Gallon Undermount Grey Tank with Heater Pad
- Bathroom:
- 28” x 34” Shower/Wet Bath (QB)
- 31” x 34” Shower (TB)
- Aqua-Hot Hydronic Water Heater & Cabin Heat
- Dometic Cassette Toilet
Additional Features
- Comfort & Technology:
- Starlink Satellite Internet
- 6” Memory Foam Queen Mattress OR
- 6” Memory Foam Twin Bed Configuration
- 3” Memory Foam Custom Cushion (Sunbrella Fabric or Marine-Grade Vinyl)
- Climate Control & Ventilation:
- MaxxAir 7500K Fan
- Nomadic Cooling 48V Air Conditioner
- Kitchen & Cooking:
- Contoure USA Convection Microwave
- Portable Induction Cooktop
- Additional Features:
- Running Boards
- Tank Monitoring in Garage & on GX Touch Screen
See us for a complete list of features and available options!
All standard features and specifications are subject to change.
All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.
Due to the current environment, our features and options are subject to change due to material availability.
