Coachmen RV Prism Elite Motor Home Class C - Diesel

Previous
Next
1 of 29

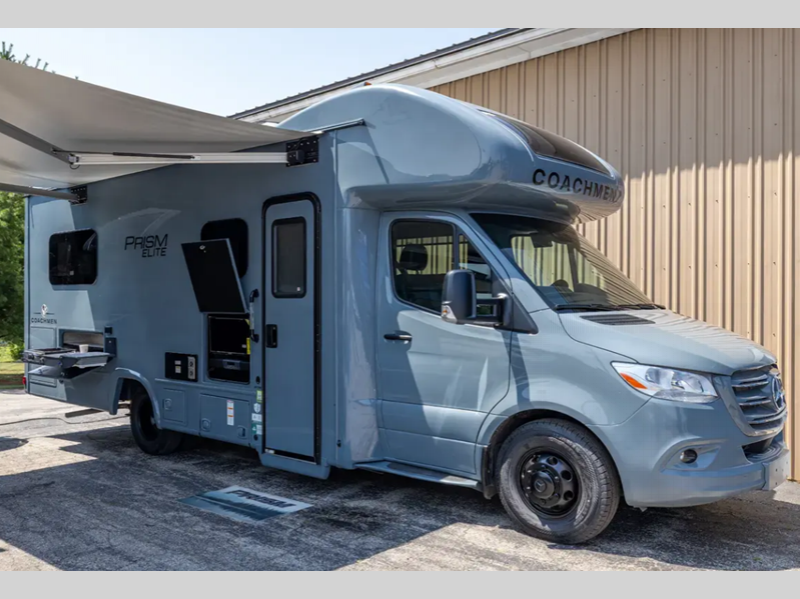

The Prism Elite class C diesel motor home by Coachmen RV may appear smaller on the exterior, but you won't be disappointed with their feature packed interiors.



From the Mercedes Sprinter chassis, 3.0L V-6 turbo diesel engine with 188 HP, the Azdel SuperLite substrate with aluminum framing, and Lamilux 4000 color-infused fiberglass providing a higher gloss finish to enjoy for years, to the Wifi Ranger, the Mechless touch screen radio and back up monitor, the upgraded cabinetry with a refined look and modern appeal, and the kitchen amenities, you can't go wrong with any Prism Elite model.



So, whether you are exploring the country, enjoying a little weekend get-a-way, or participating in a tailgating party for your favorite team, you will love the dependability, versatility, and luxury that the Prism Elite has to offer. Come select your model today!

  • Prism Elite 24EG

    Prism Elite 24EG Floorplan Image

    Take a Virtual Tour

    Coachmen Prism Elite 24EG class C diesel motor home highlights: Unique Rear ... more about Prism Elite 24EG

    Specifications

    Sleeps 4
    Slides 2
    Length 24 ft 11 in
    Ext Width 7 ft 10 in
    Ext Height 10 ft 9 in
    Int Height 6 ft 9 in
    Interior Color Garnet, Platinum
    Exterior Color Titanium, Desert Sand, Burgundy
    Hitch Weight 3500 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 35 gals
    Furnace BTU 18000 btu
    Generator 3.6 kW Onan LP
    Fuel Type Diesel
    Engine 3.0L V6 Turbo Diesel
    Chassis Sprinter 3500
    Horsepower 188 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Type Dometic Euro Style 3 Way
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 85
    Water Heater Capacity 6 gal
    Water Heater Type Gas E.I.
    AC BTU 13500 btu

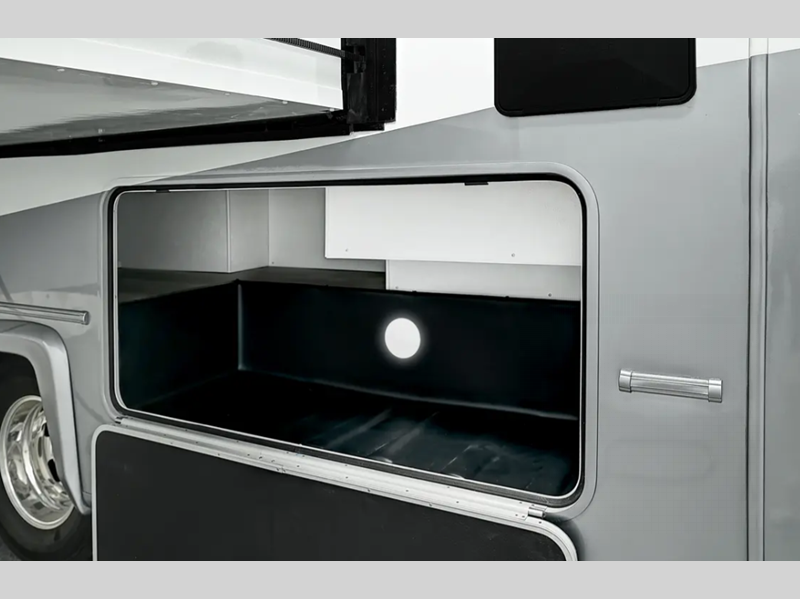

    Basement Storage 43 cu. ft.
    TV Info 12V 28" LCD TV Coach, Ext. 24" Furrion TV
    Awning Info 14' Black Armless w/LED Lights
    Gross Combined Weight 15250 lbs
    Electrical Service 30 amp

    Similar Floorplans

  • Prism Elite 24EJ

    Prism Elite 24EJ Floorplan Image

    Take a Virtual Tour

    Coachmen Prism Elite 24EJ class C diesel motor home highlights: Full Bed ... more about Prism Elite 24EJ

    Specifications

    Sleeps 4
    Slides 1
    Length 24 ft 11 in
    Ext Width 7 ft 10 in
    Ext Height 10 ft 9 in
    Int Height 6 ft 9 in
    Interior Color Crystal, Soapstone
    Exterior Color Glacier, Midnight, Scarlet, Chocolate
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Dry Weight 9709 lbs
    Cargo Weight 1321 lbs
    Fresh Water Capacity 30 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 32 gals
    Furnace BTU 18000 btu
    Generator 3.6 kW Onan LP
    Fuel Type Diesel
    Engine 3.0L V6 Turbo Diesel
    Chassis Sprinter 3500
    Horsepower 188 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Full
    Torque 325 ft-lb
    Refrigerator Type Euro Style Three Way
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 85 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric w/ E.I.
    AC BTU 13500 btu
    Basement Storage 46 cu. ft.
    TV Info Coach 12V 28" LCD TV, Ext. 24" TV
    Awning Info 14' Black Armless w/LED Light
    Gross Combined Weight 15250 lbs
    Shower Type Standard
    Electrical Service 30 amp

    Similar Floorplans

  • Prism Elite 24EE

    Prism Elite 24EE Floorplan Image

    Coachmen Prism Elite 24EE class C diesel motor home highlights: Booth Dinette ... more about Prism Elite 24EE

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 2
    Length 24 ft 11 in
    Ext Width 7 ft 10 in
    Ext Height 10 ft 9 in
    Int Height 6 ft 9 in
    Interior Color Crystal, Soapstone
    Exterior Color Glacier, Midnight, Scarlet, Chocolate
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Fresh Water Capacity 29 gals
    Grey Water Capacity 32 gals
    Black Water Capacity 35 gals
    Furnace BTU 18000 btu
    Generator 3.6 kW Onan LP
    Fuel Type Diesel
    Engine 3.0L V6 Turbo Diesel
    Chassis Sprinter 3500
    Horsepower 188 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Type Euro Style Three Way
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 85 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric w/ E.I.
    AC BTU 13500 btu
    Basement Storage 26 cu. ft.
    TV Info Coach 12V 28" LCD TV Coach, Ext. 24" TV
    Awning Info 14' Black Armless w/LED Light
    Gross Combined Weight 15250 lbs
    Electrical Service 30 amp

    Similar Floorplans

  • Prism Elite 24EF

    Prism Elite 24EF Floorplan Image

    Take a Virtual Tour

    Coachmen Prism Elite 24EF class C diesel motor home highlights: U-Shaped Dinette ... more about Prism Elite 24EF

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 24 ft 11 in
    Ext Width 7 ft 10 in
    Ext Height 10 ft 9 in
    Int Height 6 ft 9 in
    Interior Color Crystal, Soapstone
    Exterior Color Glacier, Midnight, Scarlet, Chocolate
    Hitch Weight 5000 lbs
    Gross Weight 11030 lbs
    Dry Weight 10025 lbs
    Cargo Weight 1005 lbs
    Fresh Water Capacity 35 gals
    Grey Water Capacity 28 gals
    Black Water Capacity 35 gals
    Furnace BTU 18000 btu
    Generator 3.6 kW Onan LP
    Fuel Type Diesel
    Engine 3.0L V6 Turbo Diesel
    Chassis Sprinter 3500
    Horsepower 188 hp
    Fuel Capacity 26 gals
    Wheelbase 170 in
    Number Of Bunks 1
    Available Beds Queen
    Torque 325 ft-lb
    Refrigerator Type Euro Style Three Way
    Convection Cooking Yes
    Cooktop Burners 3
    Number of Awnings 1
    Axle Weight Front 4410 lbs
    Axle Weight Rear 7720 lbs
    LP Tank Capacity 85 lbs
    Water Heater Capacity 6 gal
    Water Heater Type Gas/Electric w/ E.I.
    AC BTU 13500 btu
    Basement Storage 37 cu. ft.
    TV Info Coach 12V 32" TV, Ext. 24" TV
    Awning Info 14' Black Armless w/LED Light
    Gross Combined Weight 15250 lbs
    Electrical Service 30 amp

    Similar Floorplans

Prism Elite Features:

Standard Features



Interior Appointments

  • Italian Lightweight Nutmeg Woodgrain
  • Hardwood Doors and Drawers
  • Wellformed Front Cab
  • Satin Nickel Cabinet Hardware
  • High Gloss Poly Countertops
  • Designer Carefree Rolled Flooring
  • Vinyl Soft Touch Ceiling
  • Roller Bearing Metal Drawer Guides
  • Poplar Drawers
  • Day/Night Roller Shades and Boxed Valances
  • Tinted Radius Slider Windows

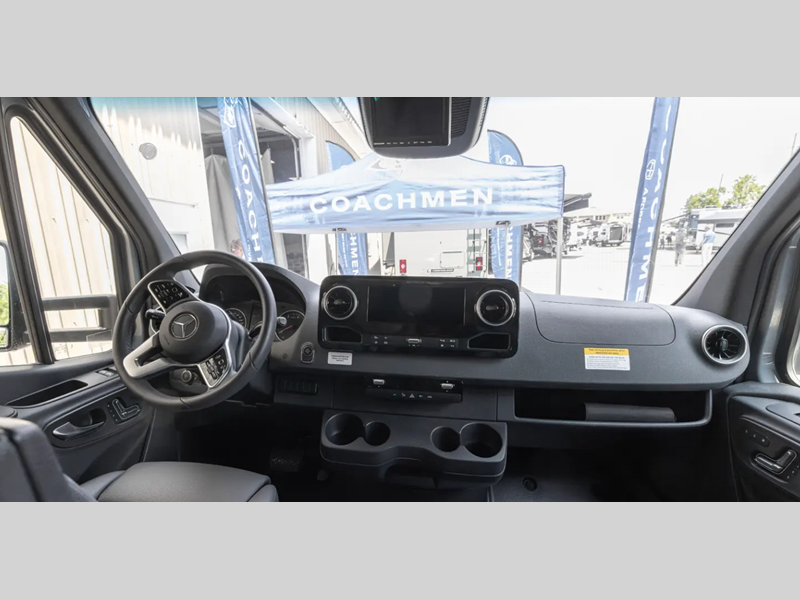

  • Rotate and Recline Pilot Seats

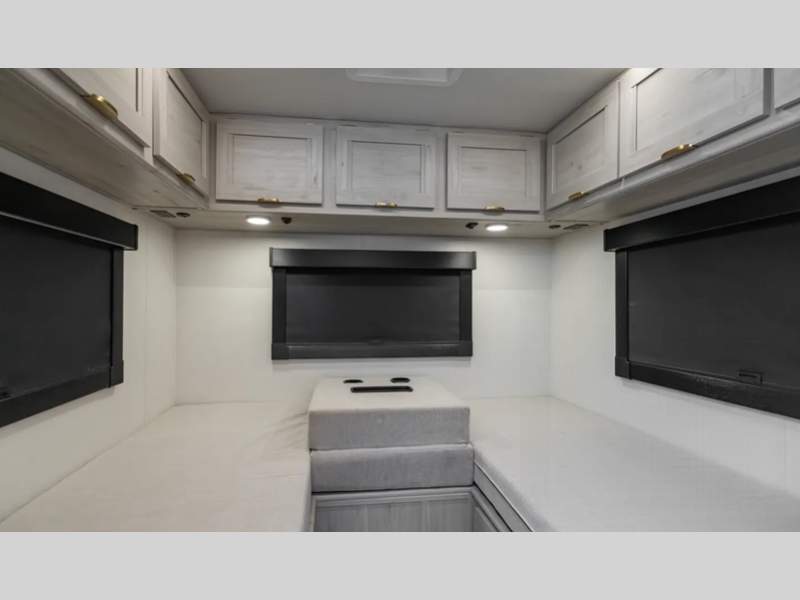

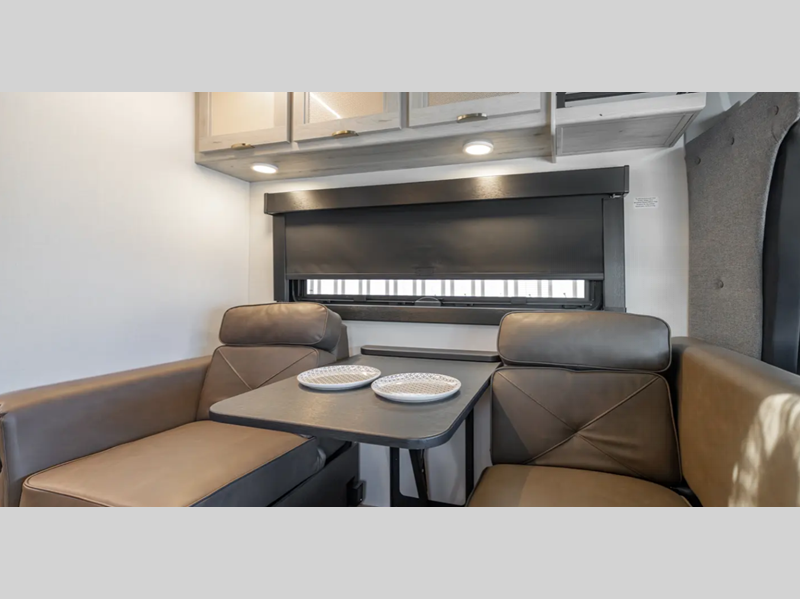

  • U- Dinette (24EJ/24EF)
  • Booth Dinette (24EE)
  • Single Child Tether at Forward Facing Dinette
  • Hardwood Shaker Flat Panel Cabinet Doors and Solid Drawers
  • Vertical Shaker House Type Bath Door
  • Black Curved Bar Grab Handle at Entrance Door
  • Vinyl Padded Up and Angle Pads
  • Magazine Rack above Entrance Door (24EF/24EE)
  • Carbon Fiber Dash Appliques

Interior Equipment

  • Omni Directional TV/FM/AM Antenna
  • WiFi Ranger
  • LP Leak Alarm
  • Smoke Detector
  • Carbon Monoxide Detector
  • Fire Extinguisher
  • Mechless Touch Screen Radio & Back Up Monitor
  • Color Backup Camera
  • Bedroom LCD TV Prep
  • 12v 28" Coach LCD TV and DVD, Speakers, and Subwoofer (24EJ/24EE)
  • Pre-wired for Satellite Dish through Coax Input
  • 12v 32" TV and Stereo/Furrion Sound Bar (24F)

Galley

  • Convection Oven
  • Euro Style 3 way Refrigerator
  • Stainless Steel Large Single Bowl Undermount Kit Sink with Cover
  • Stainless Steel Range Cabinet Guard
  • Recessed Cooktop with Glass Lid
  • Satin Nickel High Hoop Kitchen Faucet with Spray
  • Kitchen Flip Up Countertop Extension (24EJ/24EE)
  • Lighted Kitchen Backsplash

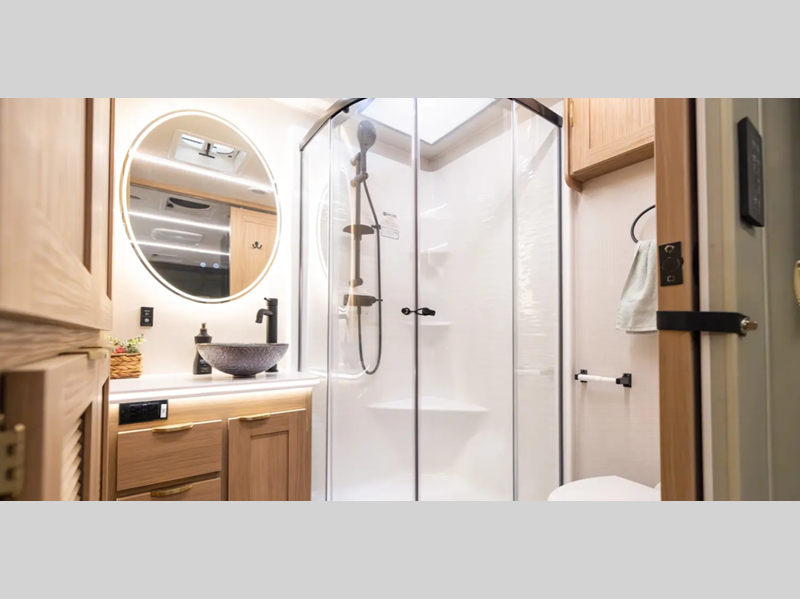

Bath and Water

  • Water Fill Panel with Blank Tank Flush
  • Low Point Drain and Winterize Valve
  • Exterior Shower
  • Power Bath Vent
  • Demand Water Pump
  • Tile Sink Backsplash
  • Vessel Lavatory Sink
  • Satin Nickel Vessel Style Lavatory Faucet
  • Satin Nickel Shower Head and Faucet
  • Lavatory Mirror

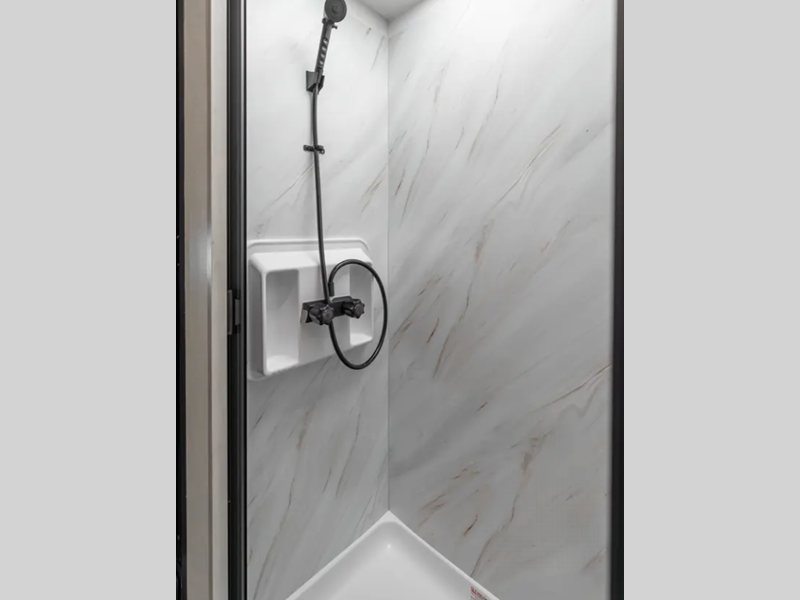

  • Glass Shower Door
  • Satin Nickel Towel Ring / TP Holder / Robe Hooks
  • Porcelain Foot Flush Toilet
  • 6-Gallon Gas/Electric with Electic Ignition Water Heater
  • Skylight Over Shower
  • Trunk Door at Termination

Sleeping

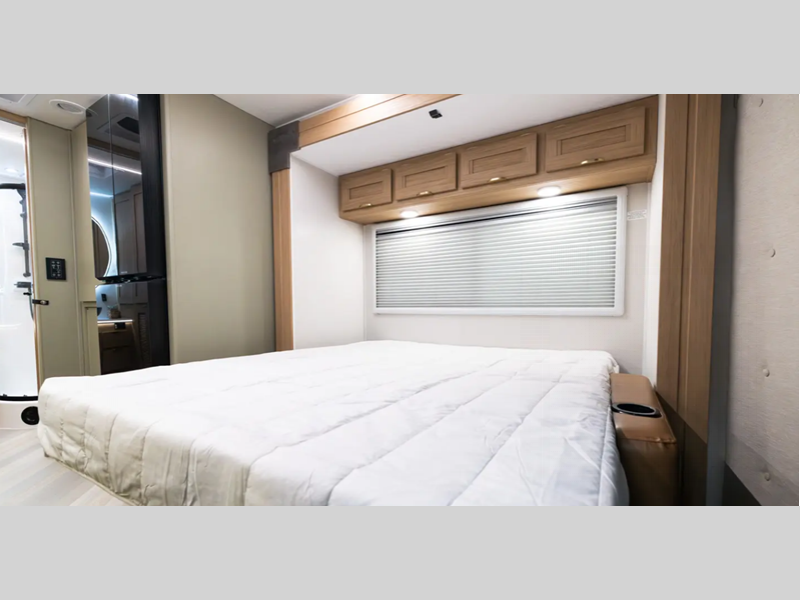

  • Queen Bed 60 x 74 (24EE/24EF)
  • Double Bed 51 x 80 (24EJ)

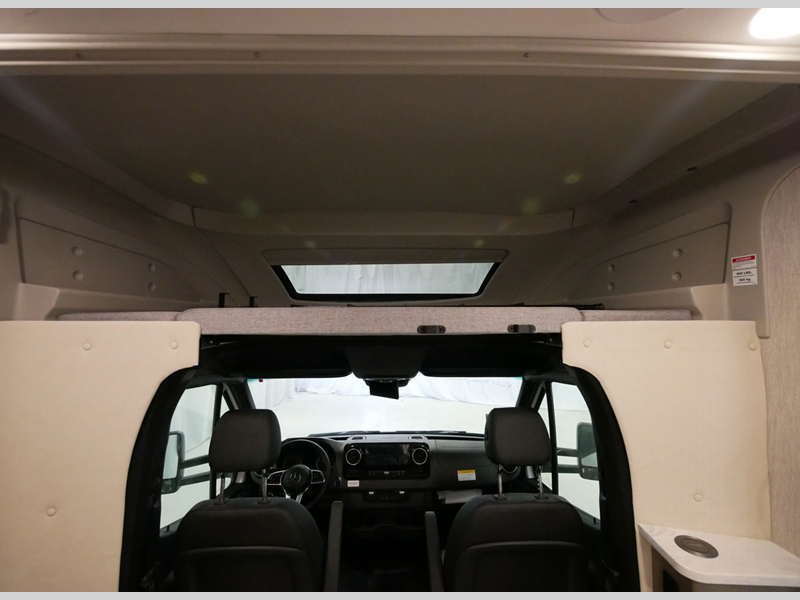

  • Cab over Bunk - 36 x 76
  • Windshield Privacy Cover
  • Nightstand's
  • Bedroom Privacy Curtain W/ Track (24EJ)
  • Padded Headboard
  • Directional Wand Reading Lights Above the Bed-LED
  • Cab Over Privacy, Black Curtain Track and Padded Valance

Electrical / Heating / AC

  • 30 Amp Power Cord
  • 55 Amp Electronic Converter
  • Dual Auxiliary Battery
  • Detachable Power Cord
  • Auto Transfer Switch
  • 3.6 KW LP Generator (Onan)
  • GFI Circuit
  • Black Manual Auxiliary Battery Disconnect
  • 18,000 BTU E.I. Ducted Furnace
  • 13,500 Ducted A/C
  • Recept and Coax Connection under Awning
  • LED Interior Lights
  • Exterior Entertainment Center - 24" TV with Bluetooth Soundbar
  • Lighted Exterior Grab Handle at Entrance Door
  • Command Center MY RV System w/5" Screen
  • Auto Gen Start
  • Exterior Rear Compartment Light - LED
  • Heated Holding Tanks
  • Pop Up Power Tower
  • Exterior Solar Panel Plug in Connection
  • Bed Area 110V CPAP Ready Area and 12V/USB Charging Station
  • Coach Power Vent Fan with Maxxair Cover
  • Exterior LP Quick Connect

Automotive / Exterior

  • 26-Gallon Fuel Tank
  • 3.0 liter V-6 Turbo Diesel
  • Driver & Passenger Air Bags
  • Cruise Control
  • Tilt Steering Wheel
  • Dash Air Conditioning
  • Power Windows & Locks
  • Exterior Mirrors w/ Remote
  • 5,000 lb. Towing Hitch with 7 Way Plug
  • Laminated Aluminum 2" Floor
  • Laminated Aluminum 2" Sidewalls
  • Crowned, Laminated Cross Flex Roof
  • Steel Entry Step w/ Battery Storage

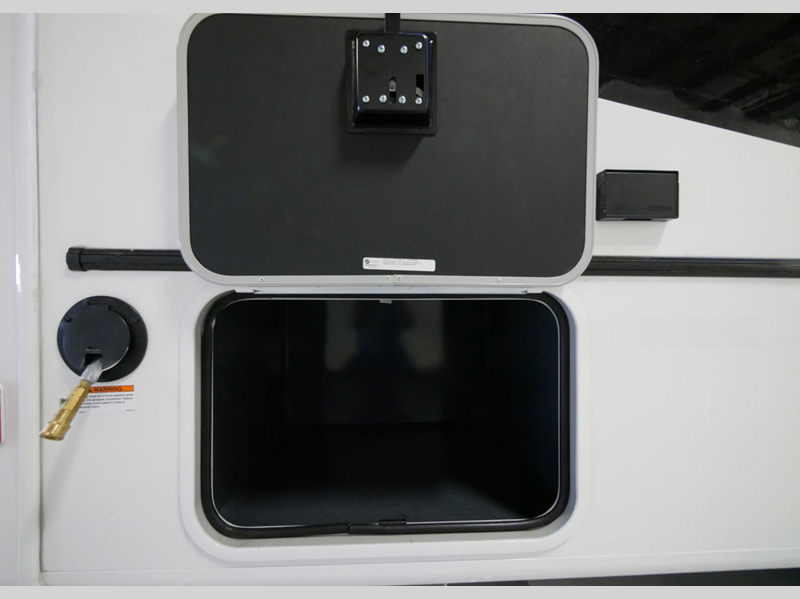

  • Slam Latch Trunk Doors with Magnetic Holder
  • 80" Radius Entrance Door with Window, Deadbolt & Strut
  • Lamilux 4000 Sidewalls & Rear wall
  • Vinyl Graphics
  • Roto Mold Rear Trunk Box / Plasti-Cote Metal side Boxes
  • Fiberglass Rear Cap
  • Fiberglass Front Cap w/ Door Step Lights
  • Fiberglass Gelcoat Running Boards
  • Fiberglass Wheel Skirts
  • Black Armless Awning with LED Light
  • Aluminum Body Side Moldings
  • Smooth Exterior Range Vent
  • Black Rear Ladder
  • Exterior LED Lights with Center Bar
  • LED Accent Strip Lights in Front Cap
  • Spare Tire
  • SafeRide RV Roadside Assistance
  • Low Roof Chassis
  • Slide Out Awnings (Where applicable)
  • Hellwig Swaybar
  • Project 2000 Power Single Step
  • Trunk Door Magnet Holders
  • Painted Cab

Options

  • Crystal
  • Soapstone
  • Bedroom 24" LCD TV (24EJ/24EE)
  • Upgrade Serta Mattress (24EJ)
  • Upgrade Folding Mattress (24EE/24EF)
  • 15K Low Profile Ducted AC with Heat Pump
  • Onan 3.2 KW Diesel Generator
  • Camping Cozy Package
  • Dual Pane Tinted Windows & Extra Knife Valves
  • Side View Cameras
  • Full Paint - Glacier
  • Full Paint - Midnight
  • Full Paint - Chocolate
  • Full Paint - Scarlet
  • Touch Screen Radio & BU Monitor w/Car Play
  • 4 Point Hydraulic Jacks

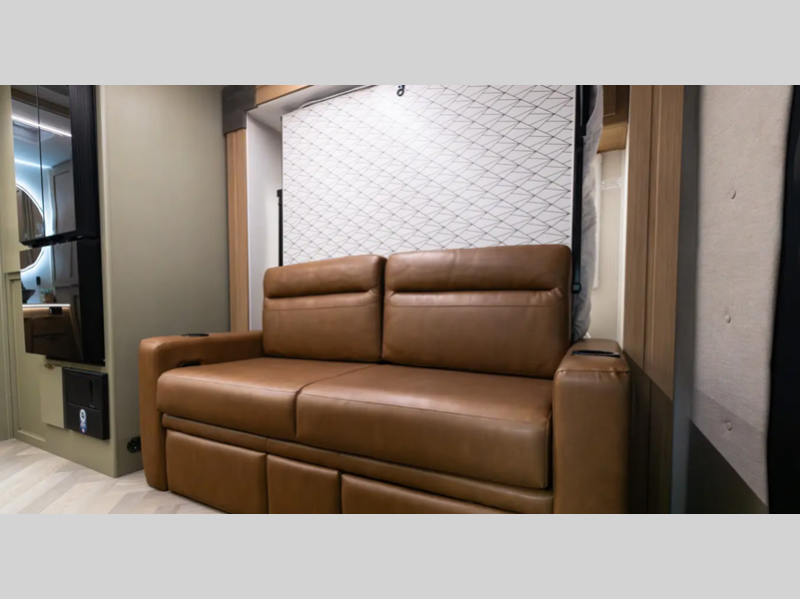

  • Sofa Option
  • Dual Recliner Option
  • Aluminum Rims

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.
